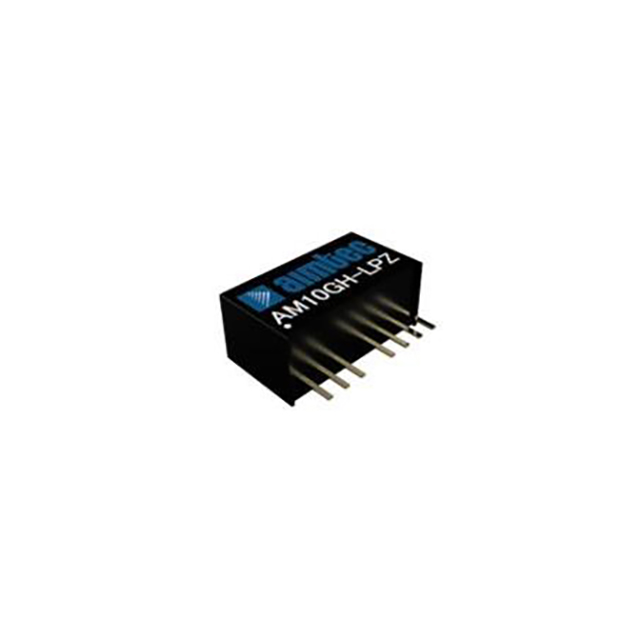

AM10GH-2405SLPZ

AM10GH-2405SLPZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists aimtec. Its product description is 9 36VAC 5VDC 2A 10W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AM10GH-2405SLPZ

• Description：9 36VAC 5VDC 2A 10W
• Series：AM10GH-LPZ (10W)
• Mfr：aimtec
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2A
• Power (Watts)：10 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：OVP, SCP
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：82%
• Mounting Type：Through Hole
• Package / Case：8-SIP Module, 7 Leads
• Size / Dimension：0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
• Supplier Device Package：8-SIP
• Control Features：-
• Approval Agency：CE
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for AM10GH-2405SLPZ
