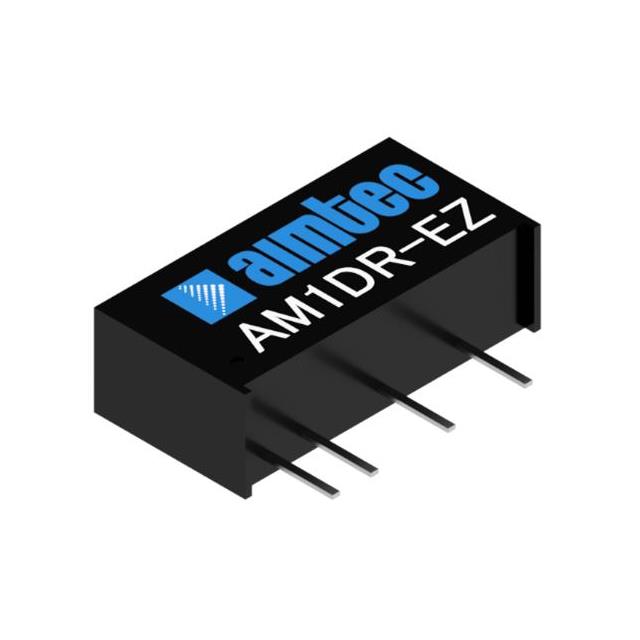

AM1DR-0503SEZ

AM1DR-0503SEZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists aimtec. Its product description is 1W DC/DC Converter. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AM1DR-0503SEZ

• Description：1W DC/DC Converter
• Series：AM1DR-EZ (1W)
• Mfr：aimtec
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.75V
• Voltage - Input (Max)：5.25V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：250mA
• Power (Watts)：1 W
• Voltage - Isolation：1500 V
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C
• Efficiency：67%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 4 Leads
• Size / Dimension：0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
• Supplier Device Package：7-SIP
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-
