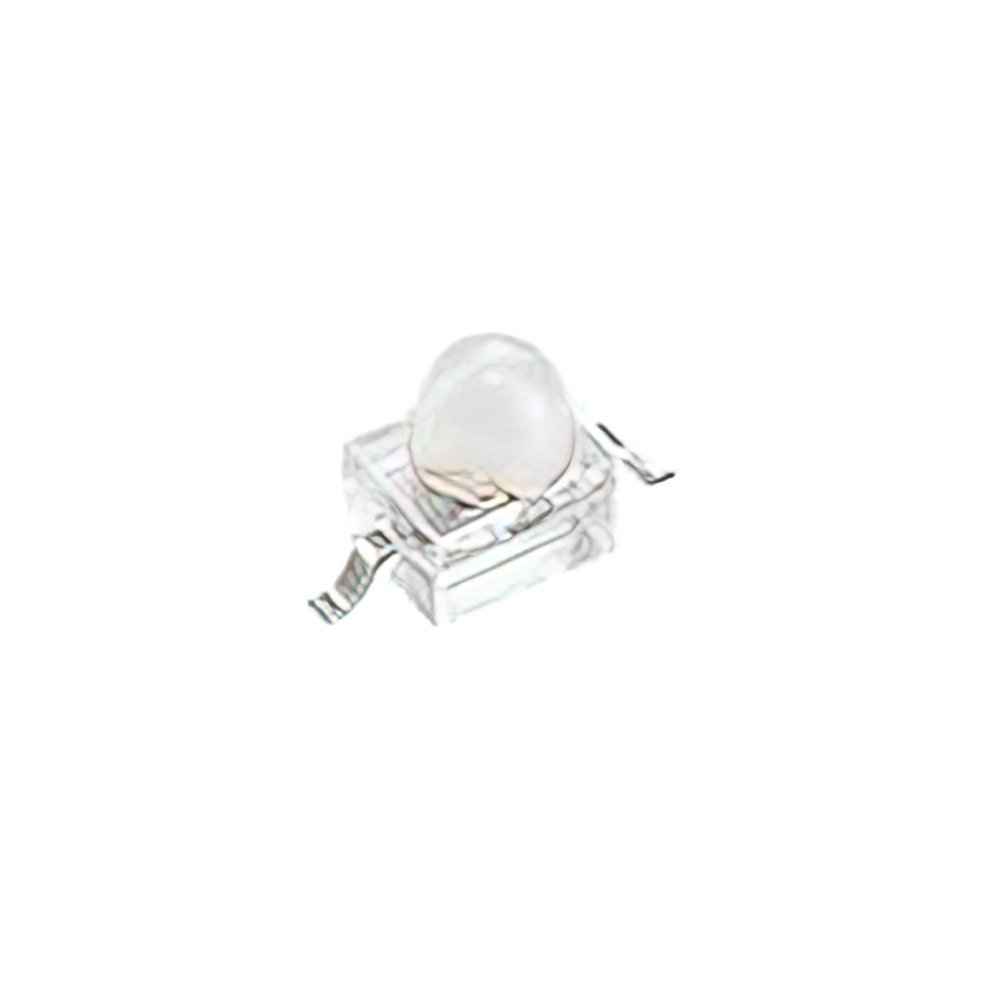

AM2520SEC03

$0.54

Description：2.5X2.0MM ORG SMD LED GULL WING
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:ef16545f67ab Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AM2520SEC03 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is 2.5X2.0MM ORG SMD LED GULL WING. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AM2520SEC03

Description：2.5X2.0MM ORG SMD LED GULL WING
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Orange
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Diffused
Millicandela Rating：2000mcd
Lens Style：Round with Domed Top
Lens Size：1.90mm Dia
Voltage - Forward (Vf) (Typ)：2V
Current - Test：20mA
Viewing Angle：20°
Mounting Type：Surface Mount
Wavelength - Dominant：601nm
Wavelength - Peak：610nm
Features：-
Package / Case：2-SMD, Gull Wing
Supplier Device Package：2-SMD
Size / Dimension：2.50mm L x 2.00mm W
Height (Max)：3.03mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AM2520SEC03

AM2520SEC03

LED Indication - Discrete Overview

The AM2520SEC03 is a single-color orange surface-mount LED manufactured by Kingbright. It features a water-clear lens with a dome shape and operates at a peak wavelength of 601 nm. The component has a typical forward voltage of 2 V and a maximum DC forward current of 20 mA, with a power rating of 75 mW. It offers a luminous intensity of 1.3 cd and a viewing angle of 20 degrees. The device is housed in an SMD-2 package with dimensions of 2.5 mm length, 2 mm width, and 2.8 mm height.

LED Indication - Discrete Feature Summary

Orange emission with water-clear dome lens for high transparency
Compact SMD-2 surface mount footprint suitable for dense PCB layouts
Standardized 20 mA forward current operation

LED Indication - Discrete Applications

Indicator lights for electronic equipment
Status display modules
Control panel illumination

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm lens clarity and binning requirements. Ensure compatibility with standard reflow soldering profiles for SMD components. Confirm RoHS compliance status through official manufacturer documentation prior to integration into final assemblies.

LED Indication - Discrete Selection Notes

Select this model when an orange indicator light with a water-clear lens is required. The 20 mA current rating and 2 V forward voltage are standard for general-purpose signaling. Consider the 20-degree viewing angle for directional visibility needs within compact housing designs.

LED Indication - Discrete Part Context

This component belongs to the AM2520 series of surface-mount LEDs from Kingbright. The series provides various color options in a consistent 2.5mm x 2.0mm form factor. The SEC03 variant specifically designates the orange wavelength configuration within this standardized product line.
