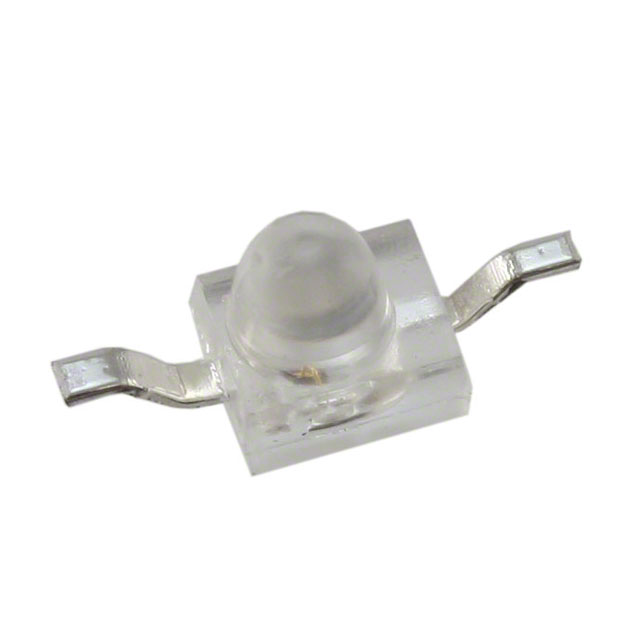

AM2520SURCK09

$0.51

Description：LED RED CLEAR 2SMD BOTTOM ENT
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:8b5071929e8d Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AM2520SURCK09 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED RED CLEAR 2SMD BOTTOM ENT. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AM2520SURCK09

Description：LED RED CLEAR 2SMD BOTTOM ENT
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：1000mcd
Lens Style：Round with Domed Top
Lens Size：1.90mm Dia
Voltage - Forward (Vf) (Typ)：1.95V
Current - Test：20mA
Viewing Angle：20°
Mounting Type：Surface Mount, Bottom Entry
Wavelength - Dominant：630nm
Wavelength - Peak：645nm
Features：-
Package / Case：2-SMD, Z-Bend, Bottom Entry
Supplier Device Package：2-SMD, Z-Bend
Size / Dimension：2.50mm L x 2.00mm W
Height (Max)：2.90mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AM2520SURCK09

AM2520SURCK09

LED Indication - Discrete Overview

The AM2520SURCK09 is a surface-mount single-color LED from the Kingbright KM2520 series. It features a hyper red lens with a water-clear finish and emits light at a peak wavelength of 640 nm. The component has a forward voltage of 1.85 V and a maximum power dissipation of 75 mW. It offers a viewing angle of 20 degrees and is housed in a compact 2-SMD package.

LED Indication - Discrete Feature Summary

Hyper red emission with water-clear lens for high visibility
Compact 2.5mm x 2.0mm SMD footprint for dense layouts
Standard configuration suitable for indicator applications

LED Indication - Discrete Applications

Electronic device status indicators
Panel board signaling
Consumer appliance control interfaces

LED Indication - Discrete Procurement Notes

Verify RoHS3 compliance and REACH status before integration. Confirm moisture sensitivity level (MSL) requirements for reflow soldering profiles. Ensure supply chain sources provide valid datasheets matching the specific suffix to guarantee optical and electrical parameter consistency.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a small form factor with standard red illumination. Compare forward voltage and luminous intensity against circuit drive capabilities. Consider thermal management within the 75 mW dissipation limit during continuous operation.

LED Indication - Discrete Part Context

This part belongs to the Kingbright KM2520 family of ultra-compact surface-mount LEDs. The series provides various color options and lens configurations within a standardized 2-SMD outline, facilitating design flexibility across different product lines while maintaining consistent mounting dimensions.
