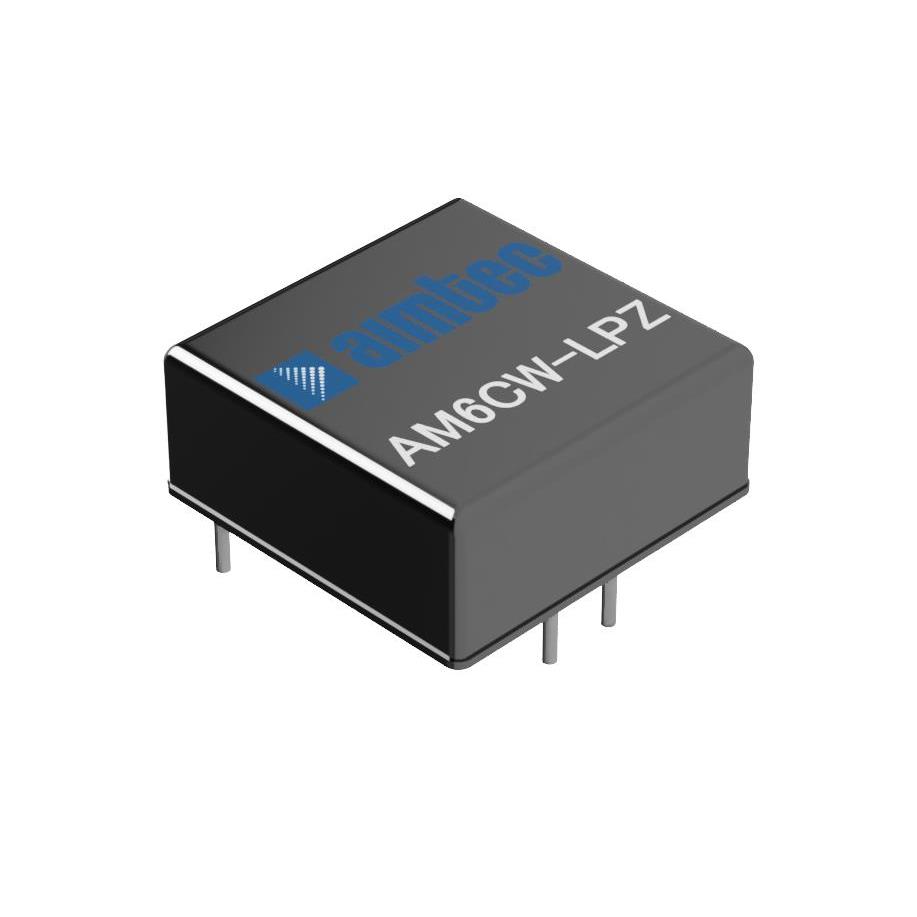

AM6CW-2424SLPZ

AM6CW-2424SLPZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists aimtec. Its product description is 6W DCDC 9~36V 24V. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AM6CW-2424SLPZ

• Description：6W DCDC 9~36V 24V
• Series：AM6CW-LPZ (6W)
• Mfr：aimtec
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：250mA
• Power (Watts)：6 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：OCP, SCP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：88%
• Mounting Type：Through Hole
• Package / Case：5-DIP Module
• Size / Dimension：1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
• Supplier Device Package：24-DIP
• Control Features：-
• Approval Agency：CE
• Standard Number：62368-1
• Grade：-
• Qualification：-
