APA1606MGC

LED Indication - Discrete Overview

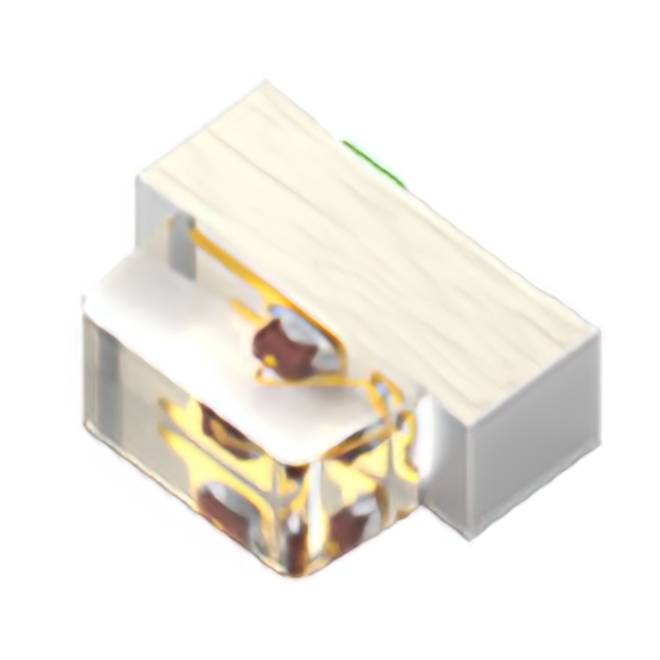

The APA1606MGC is a single-color green surface-mount LED manufactured by Kingbright. It features a water clear rectangular lens with dimensions of 1.2 mm x 0.6 mm and a height of 0.6 mm. The device emits light at a peak wavelength of 570 nm with a nominal luminous intensity of 80 mcd. Electrical characteristics include a forward current rating of 20 mA, a forward voltage of 2.1 V, and a power rating of 75 mW. It offers a viewing angle of 110 degrees and operates within a temperature range of -40 °C to +85 °C.

LED Indication - Discrete Feature Summary

• Utilizes a compact 1606 (0605 metric) surface-mount package for space-constrained designs
• Features a water clear rectangular lens to direct light output effectively
• Constructed using AlGaInP technology on a GaAs substrate for stable green emission

LED Indication - Discrete Applications

• Backlighting applications for electronic displays
• Status indicator lights in consumer electronics
• Panel illumination in industrial control equipment

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized distributors or the manufacturer's official channels. Confirm RoHS compliance status and moisture sensitivity level prior to soldering. Ensure storage conditions adhere to specified humidity limits to prevent package degradation during assembly processes.

LED Indication - Discrete Selection Notes

Select this component when a low-profile green indicator is required for tight board layouts. Consider the 110-degree viewing angle and 80 mcd intensity for visibility requirements. Evaluate thermal management needs given the 75 mW power rating and operating temperature range.

LED Indication - Discrete Part Context

This part belongs to Kingbright's specialized color LED series designed for surface-mount technology. It shares the standard 1606 footprint with other variants in the family, allowing for flexible design options while maintaining consistent mechanical mounting specifications across different color choices.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing footprints if considering alternative manufacturers.
