APA3010SYC

$0.40

Description：3.0X1.0MM (1104) RIGHT ANGLE YEL
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:eb110e52ea13 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APA3010SYC is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is 3.0X1.0MM (1104) RIGHT ANGLE YEL. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APA3010SYC

Description：3.0X1.0MM (1104) RIGHT ANGLE YEL
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Yellow
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：200mcd
Lens Style：Rectangle with Domed Top
Lens Size：2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ)：2V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount, Right Angle
Wavelength - Dominant：590nm
Wavelength - Peak：590nm
Features：-
Package / Case：2-SMD, No Lead
Supplier Device Package：2-SMD
Size / Dimension：3.00mm L x 2.00mm W
Height (Max)：1.15mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APA3010SYC

APA3010SYC

LED Indication - Discrete Overview

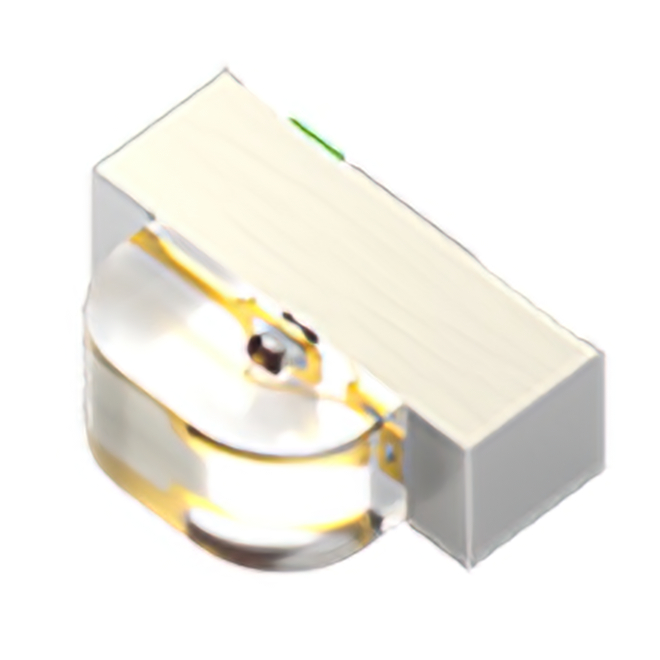

The APA3010SYC is a single-color yellow surface-mount LED manufactured by Kingbright. It features a side-looker configuration with a semitube lens shape and water-clear transparency. The device emits light at a peak wavelength of 590 nm and a dominant wavelength of 588 nm. Electrical characteristics include a forward voltage of 2.4 V maximum and a test current of 20 mA. The package dimensions are 3 mm in length, 2 mm in width, and 1 mm in height. It operates within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

Side-viewing orientation for direct visibility
Water-clear lens material for high transmission
Semitube lens geometry for controlled beam pattern

LED Indication - Discrete Applications

Panel status indicators
Equipment front-face signaling
Consumer electronics display modules

LED Indication - Discrete Procurement Notes

Verify the specific suffix against the manufacturer's official datasheet to confirm optical and electrical tolerances. Ensure compatibility with standard SMD reflow profiles and moisture sensitivity levels defined in the component documentation. Cross-reference the part number with authorized distributors to confirm current availability and compliance with RoHS standards.

LED Indication - Discrete Selection Notes

Select this component when a side-viewing form factor is required for panel mounting. The yellow emission spectrum suits general indication tasks where high visibility is needed. Consider the 3x2mm footprint for PCB space constraints. Verify that the 20mA drive current aligns with the system's power budget and thermal management capabilities.

LED Indication - Discrete Part Context

This model belongs to Kingbright's 3010 series of surface-mount LEDs. The series offers various colors and viewing angles. The APA3010SYC specifically provides a side-looker design, distinguishing it from top-emitting variants in the same physical package family. It is designed for automated assembly processes.
