APA3010VBC/D

Overview

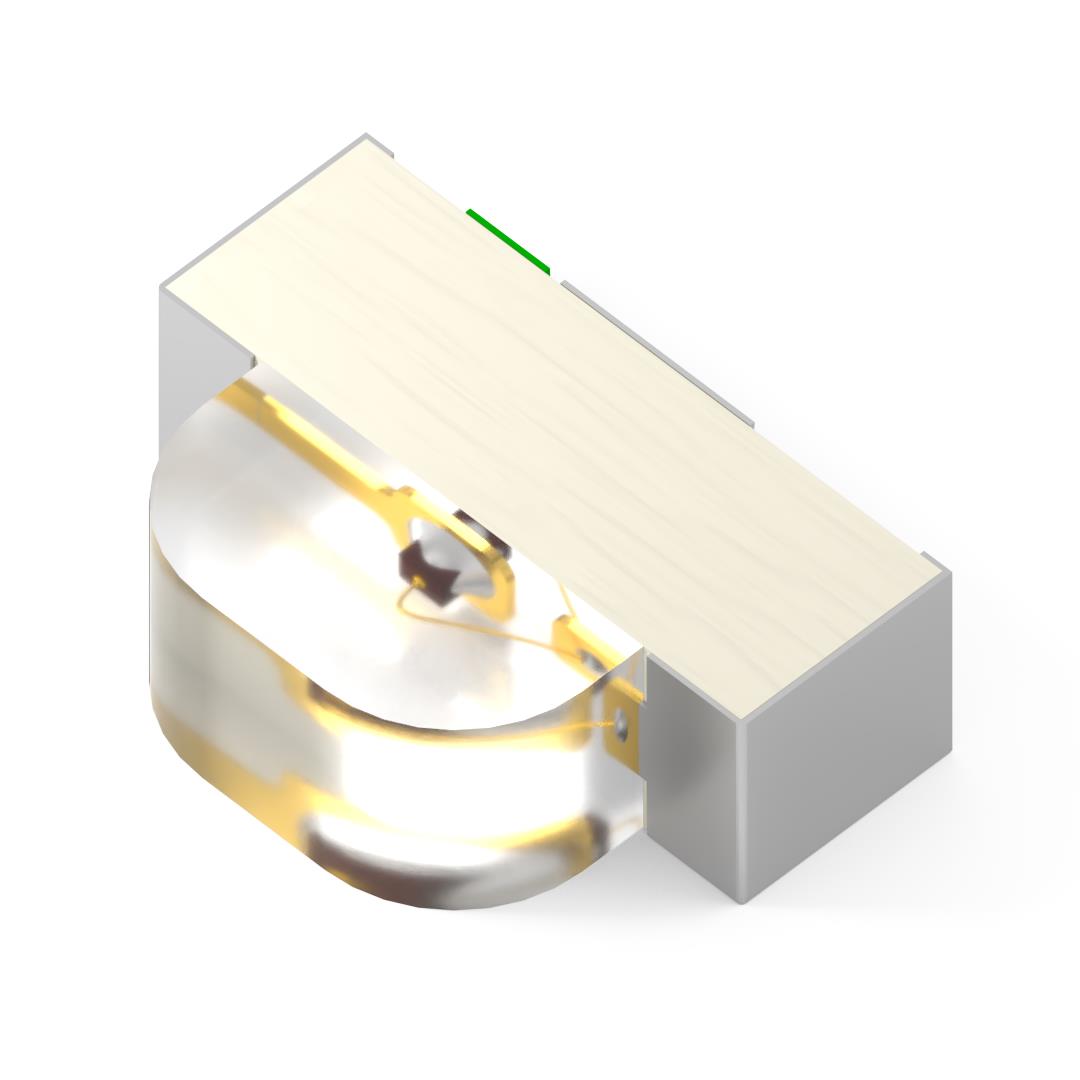

The APA3010VBC/D is a single-color surface-mount LED manufactured by Kingbright, designed for side-view applications. It emits blue light with a peak wavelength of 470 nm and features a water-clear lens. The component operates at a forward current of 20 mA with a typical forward voltage of 3.3 V. It delivers a luminous intensity of 90 mcd and offers a viewing angle of 120 degrees. The package dimensions are 3 mm in length, 2 mm in width, and 1 mm in height, utilizing a semitube lens shape suitable for SMD/SMT installation.

Feature Summary

• Side-view configuration with semitube lens geometry
• Blue emission with water-clear transparency
• Standard surface-mount footprint

Applications

• Status indicator lighting
• Panel illumination
• Electronic device signaling

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with Kingbright or authorized distributors before procurement. Confirm that the 470 nm wavelength and 90 mcd intensity meet design requirements. Check for any recent product change notifications affecting manufacturing origin or material composition to ensure supply chain consistency and regulatory adherence.

Selection Notes

Select this component when a side-view blue indicator is required in a compact SMD form factor. Ensure the circuit design accommodates the 3.3 V forward voltage drop at 20 mA. Consider the 120-degree viewing angle for visibility requirements. Verify thermal management capabilities within the -40 C to +85 C operating range for the intended application environment.

Part Context

This part belongs to Kingbright's APA series of single-color LEDs, which are characterized by their small surface-mount packages and side-view optical characteristics. The series provides various color options and intensities for general indication purposes. The APA3010VBC/D specifically addresses the need for blue illumination in space-constrained electronic assemblies requiring reliable visual feedback.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model in the provided documentation.
