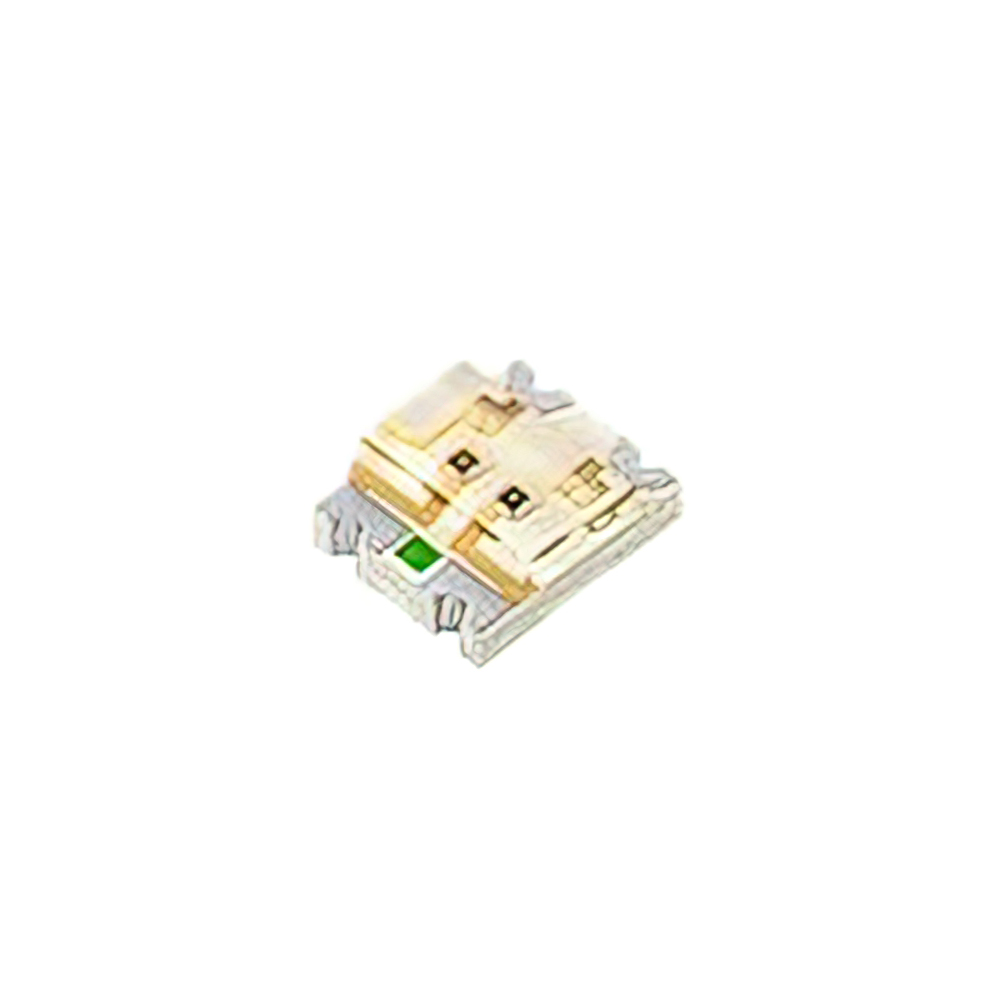

APB3025NSGC-F01

$0.41

Description：3X2.5MM BI-COLOR N/SG SMD LED
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5df8af7736e2 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APB3025NSGC-F01 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is 3X2.5MM BI-COLOR N/SG SMD LED. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APB3025NSGC-F01

Description：3X2.5MM BI-COLOR N/SG SMD LED
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green, Orange
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：15mcd Green, 15mcd Orange
Lens Style：Rectangle with Flat Top
Lens Size：2.50mm x 2.00mm
Voltage - Forward (Vf) (Typ)：2.2V Green, 2.05V Orange
Current - Test：20mA Green, 20mA Orange
Viewing Angle：160°
Mounting Type：Surface Mount
Wavelength - Dominant：568nm Green, 602nm Orange
Wavelength - Peak：565nm Green, 607nm Orange
Features：-
Package / Case：4-SMD, No Lead
Supplier Device Package：4-SMD
Size / Dimension：3.00mm L x 2.50mm W
Height (Max)：1.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APB3025NSGC-F01

APB3025NSGC-F01

LED Indication - Discrete Overview

The Kingbright APB3025NSGC-F01 is a bi-color surface-mount LED featuring green and red emitters within a 3.0 x 2.5 mm package. It utilizes four pins for independent operation. The device exhibits a forward voltage of 2.5V, with a maximum power dissipation of 75mW. Key optical parameters include a viewing angle of 120 degrees, a peak wavelength of 625nm for the red element, and a luminous intensity of 15 mcd. The component operates reliably across a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

Dual-emitter configuration enabling independent control of green and red light sources
Water-clear rectangular lens design optimized for broad visibility
RoHS compliant construction suitable for environmentally regulated assemblies

LED Indication - Discrete Applications

Status indication on electronic circuit boards
Visual signaling in consumer appliance interfaces
Panel indicators for industrial control equipment

LED Indication - Discrete Procurement Notes

Verify the specific suffix F01 to confirm reel packaging specifications. Ensure compatibility with standard reflow soldering profiles defined for moisture sensitivity level 3 components. Cross-reference pin assignments against target PCB footprints to guarantee correct electrical connection during assembly processes.

LED Indication - Discrete Selection Notes

Select this component when space constraints require a compact 3025 form factor. Choose this part for applications needing distinct red and green status signals from a single footprint. Consider the 120-degree viewing angle for general visibility requirements without precise optical aiming.

LED Indication - Discrete Part Context

This model belongs to the Kingbright APB3025 series of surface-mount LEDs. The series provides various color combinations in a standardized 3.0 x 2.5 mm outline. The NSGC designation specifically identifies the green-red color pairing within this product family.
