APBA3010ESGC-GX

LED Indication - Discrete Overview

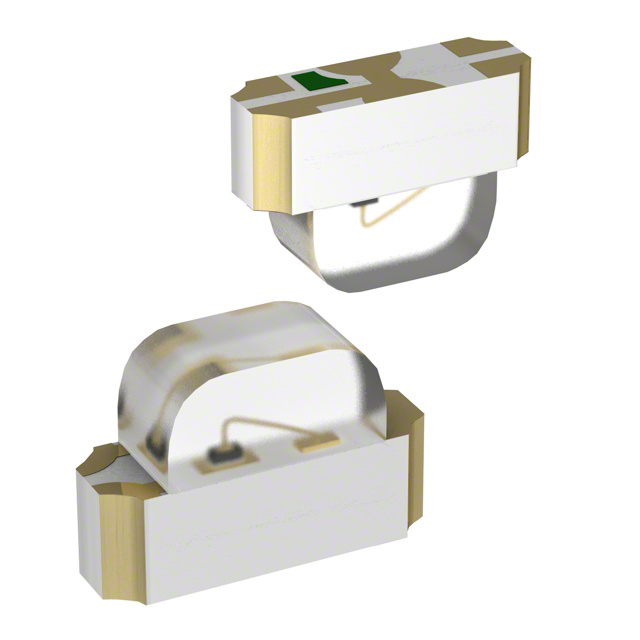

The APBA3010ESGC-GX is a bi-color surface-mount LED featuring red and green sources in a 3.0mm x 2.0mm right-angle package with a 1.0mm height. It utilizes a common cathode configuration within a 3-SMD footprint. The red element emits at a peak wavelength of 625nm with a typical forward voltage of 2V, while the green element peaks at 568nm with a typical forward voltage of 2.2V. Both LEDs operate at a test current of 20mA, providing luminous intensities of 12mcd for red and 15mcd for green. The device offers a wide viewing angle of 140 degrees and is housed in a water-clear lens.

LED Indication - Discrete Feature Summary

• Bi-color functionality combining high-efficiency red and super bright green light sources within a single compact package.
• Right-angle surface mount design optimized for space-constrained applications requiring vertical visibility.
• Wide viewing angle capability ensures broad visibility from various observation positions.
• Low power consumption characteristics suitable for battery-operated or energy-efficient indicator circuits.

LED Indication - Discrete Applications

• Status indicators for electronic equipment
• Backlighting for control panels
• Visual signaling in automotive instrumentation
• Indicator lights for medical devices

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized Kingbright distributors or certified suppliers to ensure compliance with RoHS standards and moisture sensitivity level 3 requirements. Confirm that the ordering suffix matches the specific bi-color configuration and lens transparency. Validate solderability by checking for tinned pads as specified in the datasheet. Ensure storage conditions maintain integrity prior to reflow soldering processes.

LED Indication - Discrete Selection Notes

Select this component when dual-color indication is required in a minimal footprint. The right-angle orientation distinguishes it from standard top-view LEDs. Consider the specific forward voltage differences between the red and green elements for driver circuit design. Verify that the 140-degree viewing angle meets visibility requirements compared to narrower beam alternatives. Ensure the 3-SMD package aligns with the PCB land pattern specifications.

LED Indication - Discrete Part Context

This part belongs to the Kingbright 3010 series of right-angle SMD LEDs. It shares the physical dimensions and mounting style with other variants in the family but differs in color combination and internal chip composition. The APBA prefix indicates a bi-color configuration, distinguishing it from single-color APA series counterparts. It represents a specialized solution for applications needing distinct red and green signaling without increasing board space.

LED Indication - Discrete Replacement Considerations

Direct substitutes include APBA3010SURKSGC and APBA3010SYKCGKC-F01, which share similar form factors and bi-color capabilities. Verify electrical parameters such as forward voltage and luminous intensity before substitution. Ensure the replacement part maintains the same right-angle orientation and 3-SMD package type to fit existing PCB layouts.
