APBDA3020CGKSYKC-GX

LED Indication - Discrete Overview

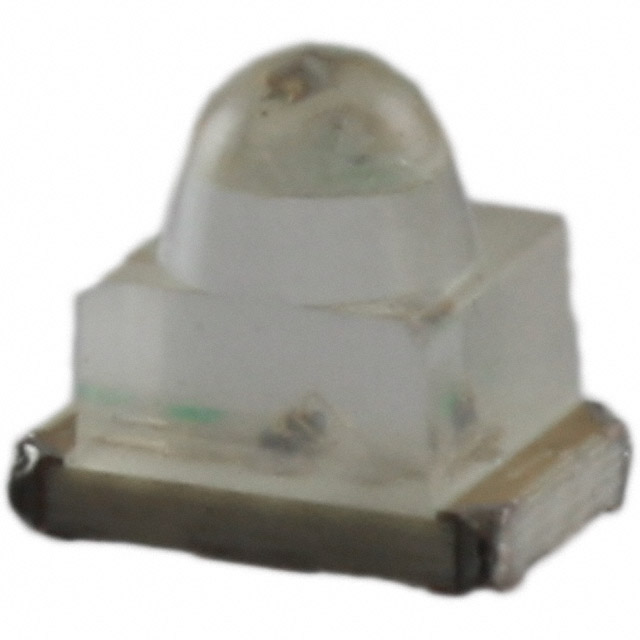

The Kingbright APBDA3020CGKSYKC-GX is a dual-color surface-mount LED in a 3.00mm x 2.80mm x 2.00mm package with a round dome lens. It features a common anode configuration emitting green (570nm) and yellow (590nm) light. Electrical characteristics include a forward voltage of 2.1V for the green element and 2.5V for the yellow element, both tested at 20mA. The device provides high luminous intensity of 800mcd for green and 900mcd for yellow. It operates within a temperature range of -40°C to +85°C and complies with RoHS3 standards.

LED Indication - Discrete Feature Summary

• Dual-color emission combining green and yellow wavelengths in a single compact component
• Common anode electrical configuration simplifies circuit design
• High luminous intensity output for clear visual indication
• Water-clear round dome lens ensures consistent optical performance

LED Indication - Discrete Applications

• Status indicators on electronic control panels
• Multi-state signaling in consumer appliances
• Visual feedback systems in industrial equipment
• Instrumentation display modules

LED Indication - Discrete Procurement Notes

Verify the exact suffix GX against manufacturer documentation to confirm binning and packaging specifications. Ensure compatibility with standard SMD reflow profiles during assembly. Confirm that the common anode pinout matches the target PCB footprint design. Validate compliance requirements such as RoHS3 for the specific destination market before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when space constraints require a dual-color indicator in a 3020 metric footprint. The common anode structure reduces pin count compared to independent cathode designs. Consider the 15-degree viewing angle for applications requiring focused visibility. Verify thermal management capabilities if operating near the maximum junction temperature limits specified in the datasheet.

LED Indication - Discrete Part Context

This part belongs to Kingbright's 3020 series of surface-mount LEDs, designed for dense PCB layouts. The series offers various color combinations and lens styles to meet diverse aesthetic and functional requirements. The 3-SMD no-lead package facilitates automated placement processes, supporting high-volume manufacturing efficiency for modern electronics assembly lines.

LED Indication - Discrete Replacement Considerations

Direct substitutes must match the 3020 package dimensions, common anode configuration, and similar wavelength specifications. Verify forward voltage tolerances to ensure driver circuit compatibility. Check lens shape and viewing angle differences if optical performance is critical for the application.
