APBDA3020QBDCGKC-GX

LED Indication - Discrete Overview

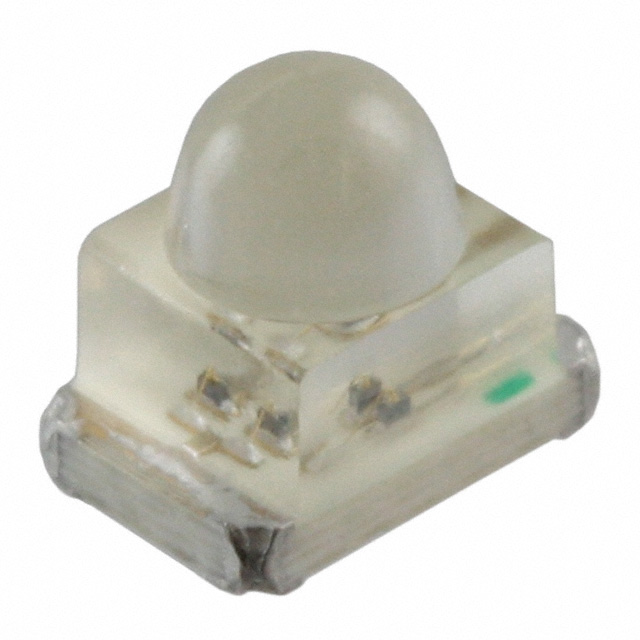

The Kingbright APBDA3020QBDCGKC-GX is a dual-color surface-mount LED featuring blue and green emitters in a 3-SMD, no-lead package. It operates with a common anode configuration. The blue element emits at a peak wavelength of 460nm (dominant 465nm) with a typical forward voltage of 3.3V at 20mA test current. The green element emits at a peak wavelength of 574nm (dominant 570nm) with a typical forward voltage of 2.1V at 20mA test current. Both colors provide a luminous intensity of 300mcd. The device utilizes a clear, round dome lens with a viewing angle of 15 degrees.

LED Indication - Discrete Feature Summary

• Dual-color emission combining blue and green light sources within a single compact component
• Common anode electrical configuration for simplified circuit integration
• Clear round dome lens design providing a narrow 15-degree viewing angle
• Surface-mount construction suitable for automated assembly processes

LED Indication - Discrete Applications

• Status indication in compact electronic devices
• Indicator lamps for consumer electronics
• Signal display in optical optoelectronic applications

LED Indication - Discrete Procurement Notes

Verify the specific suffix GX against official Kingbright documentation to confirm material compliance and binning specifications. Ensure the procurement channel provides valid RoHS3 and REACH certification data matching the component's environmental status. Confirm that the supplier source matches the manufacturer's authorized distribution network to guarantee authenticity.

LED Indication - Discrete Selection Notes

Select this component when space-constrained designs require two distinct indicator colors in a single footprint. The low profile and SMD form factor suit high-density PCB layouts. Verify that the required viewing angle aligns with the 15-degree specification, as wider angles may necessitate alternative packages. Ensure the driving circuit accommodates the differing forward voltages of the blue and green elements.

LED Indication - Discrete Part Context

This part belongs to the Kingbright 3020 series of surface-mount LEDs, designed for applications requiring minimal board space. The 3-SMD package offers a standardized mounting solution compatible with standard pick-and-place equipment. The series focuses on delivering reliable performance in compact consumer and industrial electronic assemblies.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing footprints if considering alternative dual-color SMD LEDs from other manufacturers.
