APBL3025SURKZGKC

LED Indication - Discrete Overview

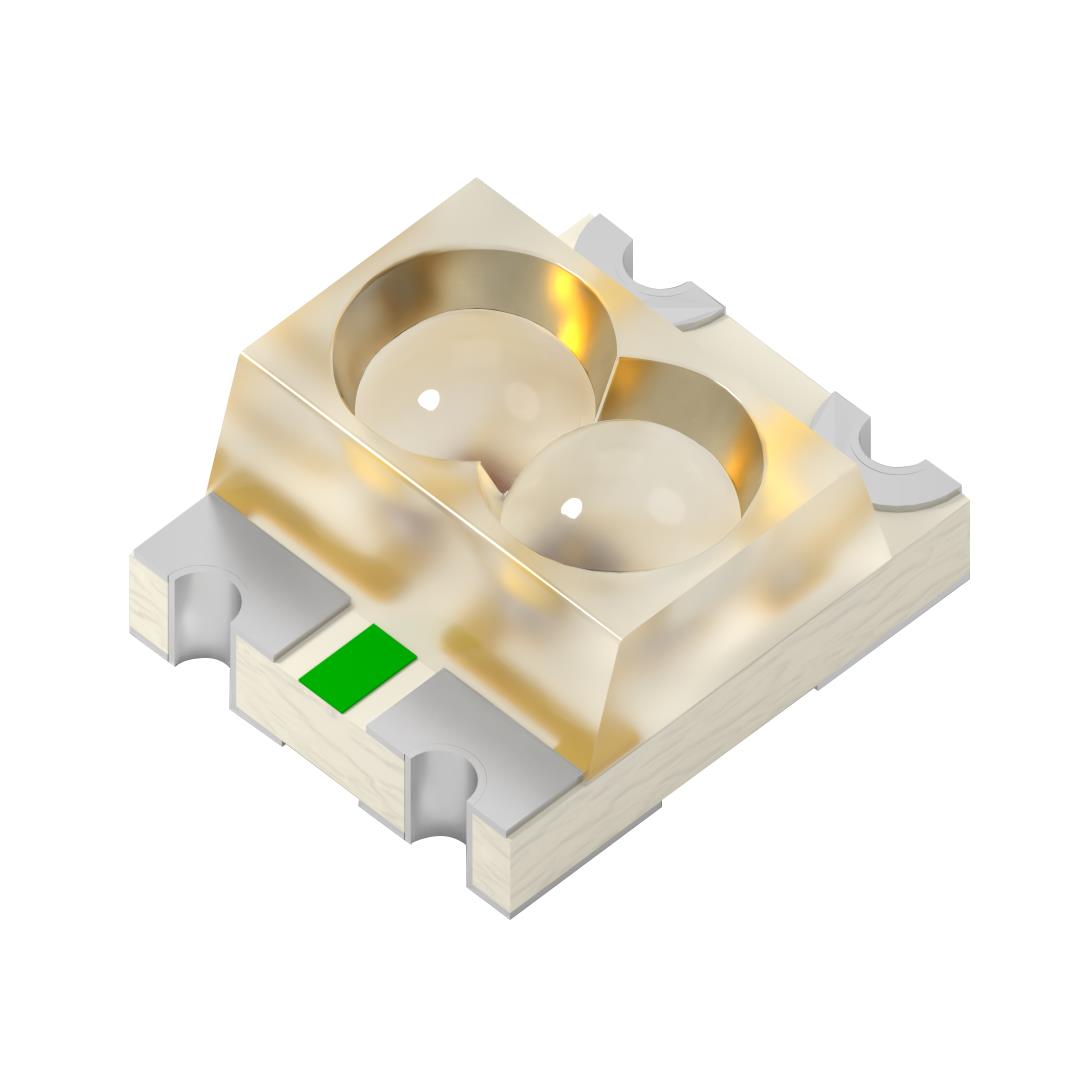

The Kingbright APBL3025SURKZGKC is a bi-color surface-mount LED in a 3025 package. It features green and red emission with peak wavelengths of 525nm and 630nm respectively. Typical forward voltages are 3.3V for green and 1.95V for red. The component measures 3.0mm x 2.5mm x 1.4mm and utilizes a 4-SMD, no-lead configuration.

LED Indication - Discrete Feature Summary

• Dual-chip bi-color design within a compact SMT footprint
• Inner lens construction for focused light output
• Lead-free soldering compatibility

LED Indication - Discrete Applications

• Multi-state status indication on electronic panels
• Bi-color signaling in consumer electronics
• Compact device interface lighting

LED Indication - Discrete Procurement Notes

Verify the specific suffix ZGKC against official Kingbright documentation to confirm lead-free compliance and exact spectral characteristics. Ensure storage conditions meet Moisture Sensitivity Level 3 requirements prior to reflow soldering to maintain component integrity.

LED Indication - Discrete Selection Notes

Select this part for applications requiring distinct red and green states in a minimal board area. Compare forward voltage requirements against available drive circuits. Confirm that the 1.4mm height fits within the mechanical envelope constraints of the target assembly.

LED Indication - Discrete Part Context

This component belongs to the Kingbright 3025 series of bi-color LEDs. It offers an alternative to single-color indicators by providing two distinct optical outputs in one package, facilitating complex status signaling without increasing PCB real estate or assembly complexity.

LED Indication - Discrete Replacement Considerations

Direct substitutes include APBL3025SYKCGKC-F01 for green/yellow variants. Verify pinout compatibility and thermal characteristics when cross-referencing other 3025 bi-color models from Kingbright or alternative manufacturers.
