Product Detailed Parameters
- Description：LED GRN/YLW CLEAR 4SMD
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Green, Yellow
- Configuration：Independent
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：120mcd Green, 150mcd Yellow
- Lens Style：Rectangle with Irregular Top
- Lens Size：2.50mm x 1.50mm
- Voltage - Forward (Vf) (Typ)：2.1V Green, 2V Yellow
- Current - Test：20mA Green, 20mA Yellow
- Viewing Angle：100°
- Mounting Type：Surface Mount
- Wavelength - Dominant：570nm Green, 590nm Yellow
- Wavelength - Peak：574nm Green, 590nm Yellow
- Features：-
- Package / Case：1210 (3225 Metric)
- Supplier Device Package：4-SMD
- Size / Dimension：3.00mm L x 2.50mm W
- Height (Max)：1.60mm
- Grade：-
- Qualification：-
Download product information
Overview

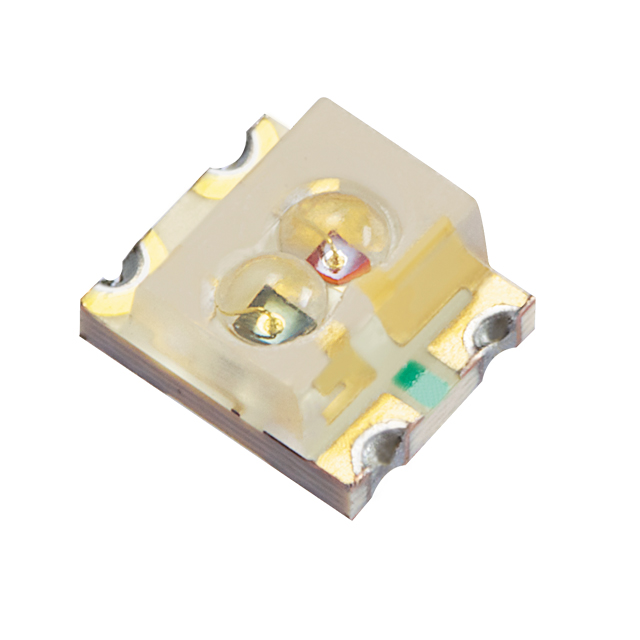

The APBL3025SYKCGKC-F01 is a dual-color surface-mount LED from Kingbright, featuring green and yellow emitters in a 1210 (3225 metric) package. It operates with a typical forward voltage of 2.1V for the green element and 2V for the yellow element at a test current of 20mA. The device emits light at peak wavelengths of 574nm (green) and 590nm (yellow). Luminous intensity reaches 120mcd for green and 150mcd for yellow. It offers a 100-degree viewing angle within a colorless, transparent lens.
Feature Summary
- Dual-color configuration combining green and yellow LEDs in a single compact SMD package
- Water-clear lens design providing high transparency and consistent light transmission
- RoHS3 compliant construction ensuring environmental safety standards are met
Applications
- Status indication on electronic circuit boards
- Multi-state signaling in industrial control panels
- Visual feedback components in consumer electronics devices
Procurement Notes
Verify component authenticity through authorized distributors to ensure compliance with RoHS3 specifications. Confirm that the 1210 footprint matches PCB layout requirements. Check moisture sensitivity level classifications for proper storage handling. Validate datasheet revisions against production batches to ensure parameter consistency.
Selection Notes
Select this component when space-constrained designs require distinct green and yellow status indicators. The 1210 form factor suits dense board layouts where traditional through-hole parts are unsuitable. Consider the specific forward voltage requirements for driver circuit compatibility. Evaluate luminous intensity needs against ambient lighting conditions for visibility.
Part Context
This part belongs to Kingbright's APBL3025 series of bi-color LEDs. It shares the standard 1210 mechanical dimensions with other variants in the family but differs in optical characteristics and internal chip configuration. The series provides multiple color combinations for diverse signaling applications.
Replacement Considerations
APB3025SYKCGKC-F01 serves as a direct functional substitute with identical electrical parameters and pinout.
