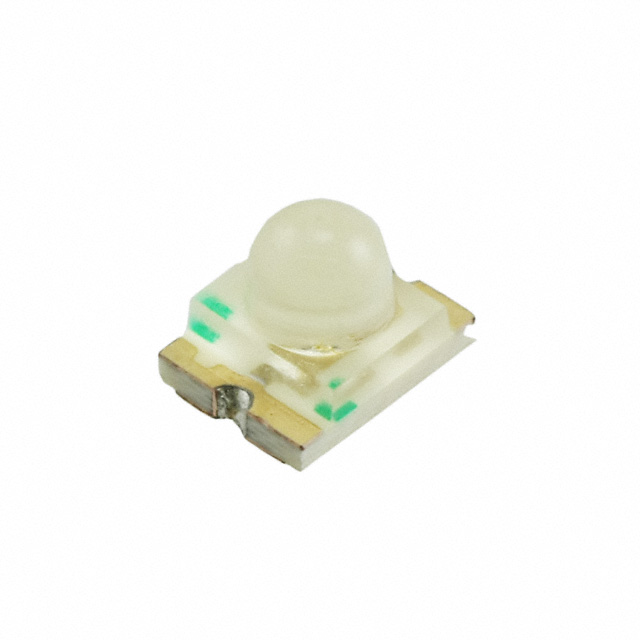

APD3224CGCK-F01

$0.32

Description：LED GREEN CLEAR SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:03cc6cf86b68 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APD3224CGCK-F01 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED GREEN CLEAR SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APD3224CGCK-F01

Description：LED GREEN CLEAR SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：600mcd
Lens Style：Round with Domed Top
Lens Size：1.70mm Dia
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：20mA
Viewing Angle：20°
Mounting Type：Surface Mount
Wavelength - Dominant：570nm
Wavelength - Peak：574nm
Features：-
Package / Case：1210 (3225 Metric)
Supplier Device Package：SMD
Size / Dimension：3.20mm L x 2.40mm W
Height (Max)：2.40mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APD3224CGCK-F01

APD3224CGCK-F01

LED Indication - Discrete Overview

The Kingbright APD3224CGCK-F01 is a single-color surface-mount LED emitting green light with a peak wavelength of 570 nm. It utilizes a water-clear dome lens within a 1210 (3224 metric) package measuring 3.2 mm in length and 2.4 mm in width. The component operates at a typical forward voltage of 2.1 V and features a viewing angle of 20 degrees. Designed for indicator applications, it offers high brightness output suitable for electronic status displays.

LED Indication - Discrete Feature Summary

Emits green light with a 570 nm peak wavelength
Features a water-clear dome lens for optical clarity
Utilizes a compact 1210 surface-mount footprint

LED Indication - Discrete Applications

Electronic device status indicators
Panel illumination
Power supply status signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix against manufacturer documentation to confirm exact binning and spectral characteristics. Ensure compatibility with standard SMD reflow profiles and moisture sensitivity levels during assembly. Cross-reference datasheet parameters for forward current limits to prevent thermal damage.

LED Indication - Discrete Selection Notes

Select this component for designs requiring a standard 1210 footprint with green emission. Consider the 20-degree viewing angle for directional visibility requirements. Evaluate the 2.1 V forward voltage drop against available drive circuitry to ensure proper biasing without excessive current limiting.

LED Indication - Discrete Part Context

This part belongs to the Kingbright APD series of surface-mount LEDs. The series provides various color options in standardized metric packages. The 1210 form factor allows for dense PCB layouts while maintaining adequate luminous intensity for visible indication purposes in consumer and industrial electronics.
