APDA1806CGCK

LED Indication - Discrete Overview

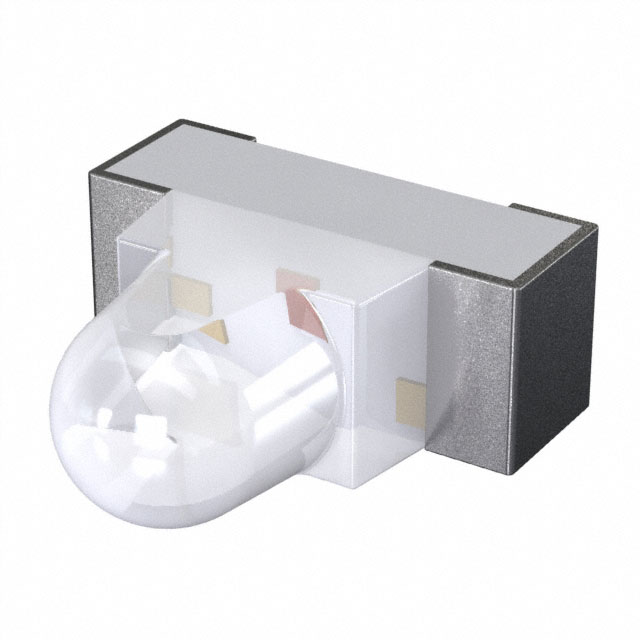

The APDA1806CGCK is a single-color green surface-mount LED manufactured by Kingbright. It features a right-angle package with dimensions of 1.8 mm in length, 1.5 mm in width, and 0.6 mm in height. The device utilizes a dome-shaped lens with water clarity to emit light at a peak wavelength of 570 nm. Key electrical parameters include a forward current of 20 mA, a forward voltage of 2.1 V, and a power rating of 75 mW. The nominal luminous intensity is specified as 400 mcd, with a viewing angle of 25 degrees. It operates within a temperature range of -40 °C to +85 °C.

LED Indication - Discrete Feature Summary

• Right-angle surface mount design for compact PCB integration
• Water clear dome lens enhances light transmission
• RoHS compliant construction suitable for regulated environments

LED Indication - Discrete Applications

• Backlighting applications
• Electronic indicator lights
• Panel status indicators

LED Indication - Discrete Procurement Notes

Verify the specific part number against manufacturer datasheets to ensure correct lens type and emission characteristics. Confirm moisture sensitivity level requirements for storage and handling procedures prior to assembly. Check RoHS compliance documentation if environmental regulations apply to the final product. Ensure soldering profiles match the thermal specifications provided in the official component documentation.

LED Indication - Discrete Selection Notes

Select this component when a low-profile right-angle green LED is required for space-constrained designs. Consider the 25-degree viewing angle for focused indication needs rather than wide-area illumination. Evaluate the 0.6 mm height constraint against available board clearance. Compare luminous intensity requirements against alternative packages if higher brightness is necessary.

LED Indication - Discrete Part Context

This component belongs to the APDA1806 series of right-angle SMD LEDs from Kingbright. The series offers various color options including yellow and orange variants. These devices are designed for general-purpose indication and backlighting tasks. The family shares common mechanical footprints while differing in optical properties and semiconductor materials.

LED Indication - Discrete Replacement Considerations

The part number alias KPDA-1806CGCK refers to the same component. Verify pinout compatibility and mechanical dimensions before substituting with other green LEDs. Cross-reference datasheets for forward voltage and current ratings to ensure circuit compatibility.
