APDA1806VBC/D

$0.70

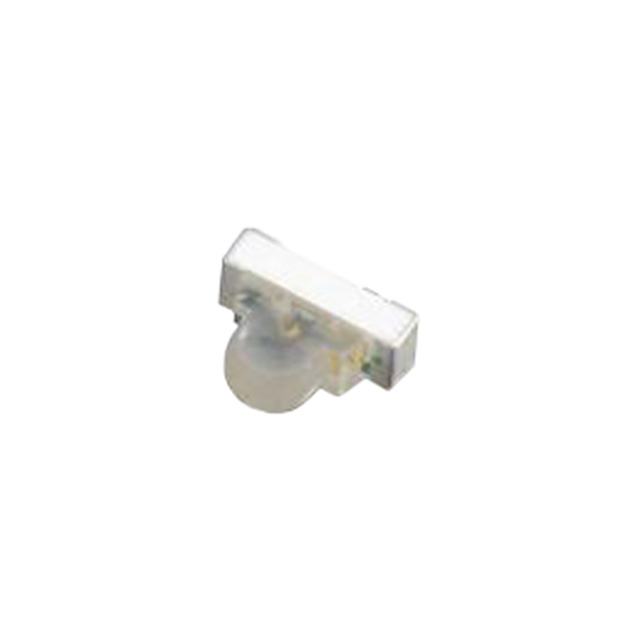

Description：LED BLUE CLEAR SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3a27349eac87 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APDA1806VBC/D is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED BLUE CLEAR SMD R/A. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APDA1806VBC/D

Description：LED BLUE CLEAR SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Blue
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：800mcd
Lens Style：Round with Domed Top
Lens Size：0.94mm Dia
Voltage - Forward (Vf) (Typ)：3.3V
Current - Test：20mA
Viewing Angle：25°
Mounting Type：Surface Mount, Right Angle
Wavelength - Dominant：470nm
Wavelength - Peak：465nm
Features：-
Package / Case：2-SMD, No Lead
Supplier Device Package：SMD
Size / Dimension：1.80mm L x 1.50mm W
Height (Max)：0.70mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APDA1806VBC/D

APDA1806VBC/D

LED Indication - Discrete Overview

The APDA1806VBC/D is a single-color blue surface-mount LED manufactured by Kingbright. It features a right-angle configuration with a water-clear dome lens and emits light at a peak wavelength of 460 nm. The component operates with a typical forward voltage of 3.3 V at a test current of 20 mA, producing an optical intensity of 320 mcd. Its physical dimensions are 1.80 mm in length, 1.50 mm in width, and a maximum height of 0.70 mm. The device supports a standard operating temperature range from -40°C to +85°C and complies with RoHS3 standards.

LED Indication - Discrete Feature Summary

Right-angle surface-mount design for vertical board mounting
Water-clear dome lens for focused light emission
High-intensity blue output suitable for indicator applications

LED Indication - Discrete Applications

Electronic equipment status indicators
Control panel illumination
Medical device signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix against the manufacturer's latest datasheet to confirm active status, as availability may vary. Confirm moisture sensitivity level (MSL 3) requirements for storage and reflow soldering processes. Ensure the right-angle package orientation matches the PCB layout constraints before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a compact, high-brightness blue indicator is required in a vertical orientation. Compare the 320 mcd intensity against application visibility needs. Verify that the 3.3 V forward voltage aligns with the driving circuit capabilities. Consider the 1.80 x 1.50 mm footprint for space-constrained designs requiring right-angle emission.

LED Indication - Discrete Part Context

This part belongs to the APDA1806 series of right-angle SMD LEDs from Kingbright. The series offers various color options within a standardized 1.80 x 1.50 mm package. The APDA1806VBC/D specifically provides blue emission characteristics optimized for clear visibility in industrial and consumer electronics environments.
