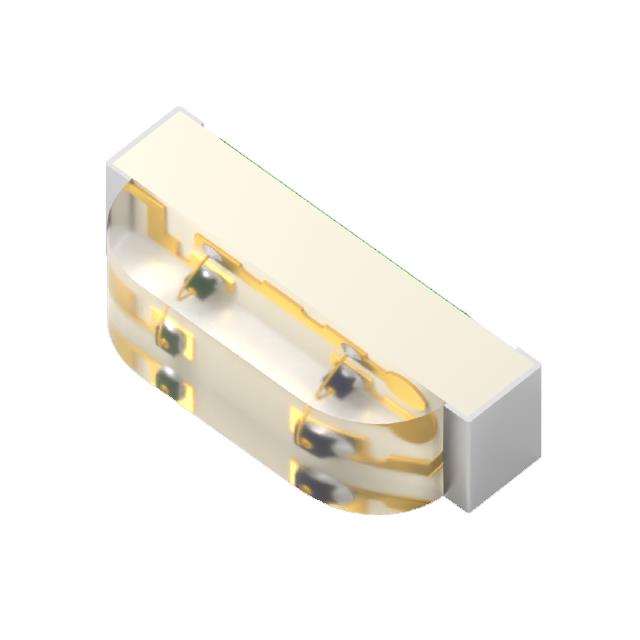

APFA2507R9G2C

$0.77

Description：LED GREEN/RED CLEAR 4SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:1b7009fc97ac Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APFA2507R9G2C is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED GREEN/RED CLEAR 4SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APFA2507R9G2C

Description：LED GREEN/RED CLEAR 4SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green, Red
Configuration：Common Anode
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：110mcd
Lens Style：Rectangle with Domed Top
Lens Size：2.10mm x 0.70mm
Voltage - Forward (Vf) (Typ)：2.1V Green, 2V Red
Current - Test：20mA
Viewing Angle：130°
Mounting Type：Surface Mount
Wavelength - Dominant：570nm Green, 621nm Red
Wavelength - Peak：574nm Green, 630nm Red
Features：-
Package / Case：4-SMD, No Lead
Supplier Device Package：4-SMD
Size / Dimension：2.50mm L x 1.10mm W
Height (Max)：1.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APFA2507R9G2C

APFA2507R9G2C

LED Indication - Discrete Overview

The APFA2507R9G2C is a right-angle surface-mount bi-color LED from Kingbright, featuring a 2.5 mm x 0.7 mm package with a 1 mm height. It emits red light at 630 nm and green light at 525 nm through a colorless dome lens. The component supports a forward current of 20 mA, with forward voltages of 2 V for red and 2.1 V for green. It offers luminous intensities of 80 mcd (red) and 150 mcd (green), operating within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

Right-angle SMD configuration for compact board layout
Dual-chip bi-color design in a single package
Water-clear dome lens for optimized light emission

LED Indication - Discrete Applications

Status indication on electronic control panels
Power supply status indicators
Medical device operational signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix designation during procurement, as variants such as APFA2507R9G2C-C2 may exist with distinct packaging or handling specifications. Confirm RoHS compliance status directly with the manufacturer's documentation. Ensure that the selected part number matches the required forward voltage and wavelength parameters for the target circuit design before finalizing orders.

LED Indication - Discrete Selection Notes

Select this component when space constraints require a right-angle orientation for visibility. The dual-chip architecture allows independent control of red and green states. Verify that the PCB footprint accommodates the 2.5 mm x 0.7 mm dimensions and that the driving circuitry can handle the specified 20 mA forward current without exceeding thermal limits.

LED Indication - Discrete Part Context

This part belongs to Kingbright’s APFA series of high-intensity surface-mount LEDs. The series is characterized by small form factors suitable for modern electronics. The APFA2507R9G2C specifically utilizes a right-angle lead frame to direct light perpendicular to the board surface, enhancing visibility in tight enclosures compared to standard top-view packages.
