APG015SEKKC-TT

LED Indication - Discrete Overview

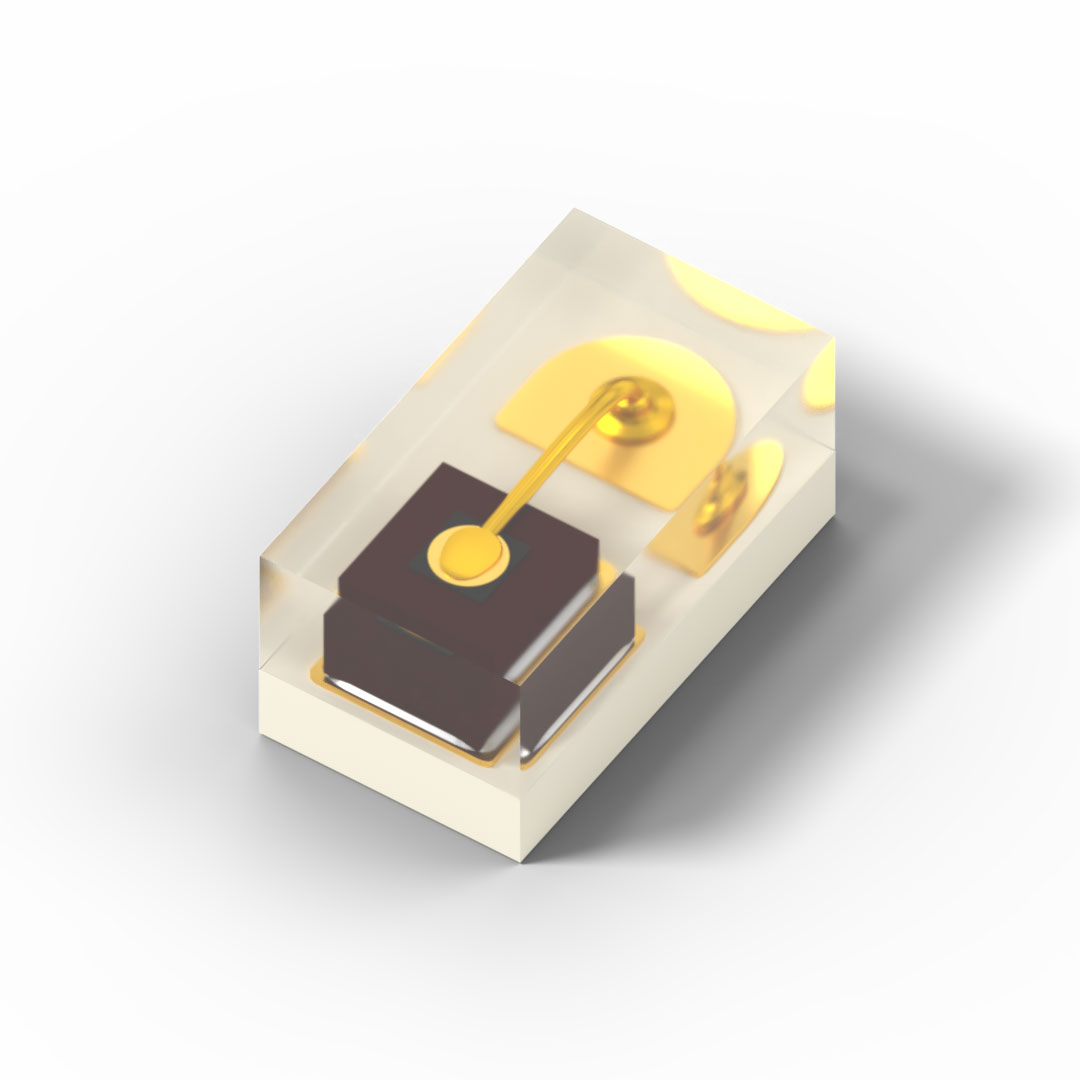

The APG015SEKKC-TT is a single-color surface-mount LED manufactured by Kingbright, featuring an orange emission with a peak wavelength of 611 nm. It utilizes a compact 3015 package measuring 0.45 mm in length and 0.2 mm in height. The component operates with a forward current of 10 mA and a forward voltage of 2 V. It offers a water-clear lens and provides a light intensity of 150 mcd.

LED Indication - Discrete Feature Summary

• Compact 3015 surface-mount form factor for space-constrained designs
• Orange emission with 611 nm peak wavelength
• Water-clear lens for optimized light transmission

LED Indication - Discrete Applications

• Panel indicators
• Status signaling
• Consumer electronics displays

LED Indication - Discrete Procurement Notes

Verify the specific suffix TT against official Kingbright documentation to confirm tape-and-reel packaging specifications. Ensure compatibility with standard SMD reflow soldering profiles. Confirm RoHS compliance status through the manufacturer's latest environmental declaration before integration into regulated assemblies.

LED Indication - Discrete Selection Notes

Select this component when a low-profile orange indicator is required for dense PCB layouts. The 3015 size supports automated placement. Verify that the 10 mA drive current aligns with system power budgets. Compare optical intensity requirements against alternative wavelengths if visibility standards differ.

LED Indication - Discrete Part Context

This part belongs to the Kingbright APG series of ultra-small SMD LEDs. The series focuses on miniaturization while maintaining reliable optical performance. The APG015 variant specifically targets applications requiring minimal board area occupation without sacrificing luminous efficiency or color consistency.

LED Indication - Discrete Replacement Considerations

Consult Kingbright datasheets for direct cross-references within the APG series. Verify pinout orientation and thermal characteristics when substituting with other 3015 orange LEDs from different manufacturers.
