APG0201VWF-A1-5MAV

LED Indication - Discrete Overview

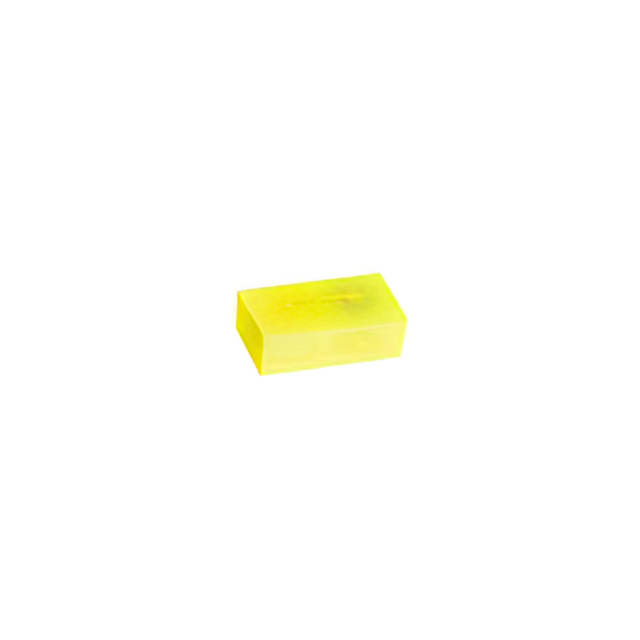

The Kingbright APG0201VWF-A1-5MAV is a single white surface-mount LED in the 0201 (0603 metric) package. It features a rectangular yellow lens with dimensions of 0.65 mm x 0.35 mm x 0.20 mm. The component emits white light with an intensity of 320 mcd and a viewing angle of 140 degrees. Electrical characteristics include a forward current of 5 mA and a forward voltage of 2.9 V. It operates within a temperature range of -40°C to +85°C and is moisture sensitive.

LED Indication - Discrete Feature Summary

• Ultra-thin 0.20 mm profile suitable for compact designs
• High-intensity white emission with wide viewing angle
• Compatible with standard SMD/SMT assembly processes

LED Indication - Discrete Applications

• Smartphone indicator lights
• Wearable device status displays
• Compact consumer electronics illumination

LED Indication - Discrete Procurement Notes

Verify RoHS compliance status through official datasheets or manufacturer confirmation prior to procurement. Confirm availability as distribution channels may indicate regional sales restrictions. Ensure handling procedures account for moisture sensitivity classification during storage and reflow soldering to maintain component integrity.

LED Indication - Discrete Selection Notes

Select this component for applications requiring minimal footprint and low profile constraints. The 0201 package size supports high-density PCB layouts. Consider the 140-degree viewing angle for broad visibility requirements. Verify that the 5 mA forward current aligns with system power budget and drive circuit capabilities.

LED Indication - Discrete Part Context

This part belongs to Kingbright's APG series of ultra-thin SMD LEDs, designed for space-constrained portable electronics. The series emphasizes compatibility with automated placement equipment while maintaining high optical output relative to package size. It represents a solution for modern devices demanding miniaturization without compromising brightness.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other Kingbright 0201 white LEDs such as APG0201VBC/A-5MAV variants, though color and intensity differ. Cross-manufacturer replacements require matching 0201 footprint, 0.20 mm height, and similar electrical parameters like 2.9 V forward voltage.
