Product Detailed Parameters
- Description：1.6X0.2MM RIGHT ANGLE GREEN SMD
- Series：-
- Mfr：Kingbright
- Package：Bulk
- Color：Green
- Configuration：Independent
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：450mcd
- Lens Style：Rectangle with Flat Top
- Lens Size：1.20mm x 0.20mm
- Voltage - Forward (Vf) (Typ)：3.3V
- Current - Test：20mA
- Viewing Angle：150°
- Mounting Type：Surface Mount, Right Angle
- Wavelength - Dominant：525nm
- Wavelength - Peak：515nm
- Features：-
- Package / Case：0603 (1608 Metric)
- Supplier Device Package：603
- Size / Dimension：1.60mm L x 0.90mm W
- Height (Max)：0.30mm
- Grade：-
- Qualification：-
Download product information
Overview

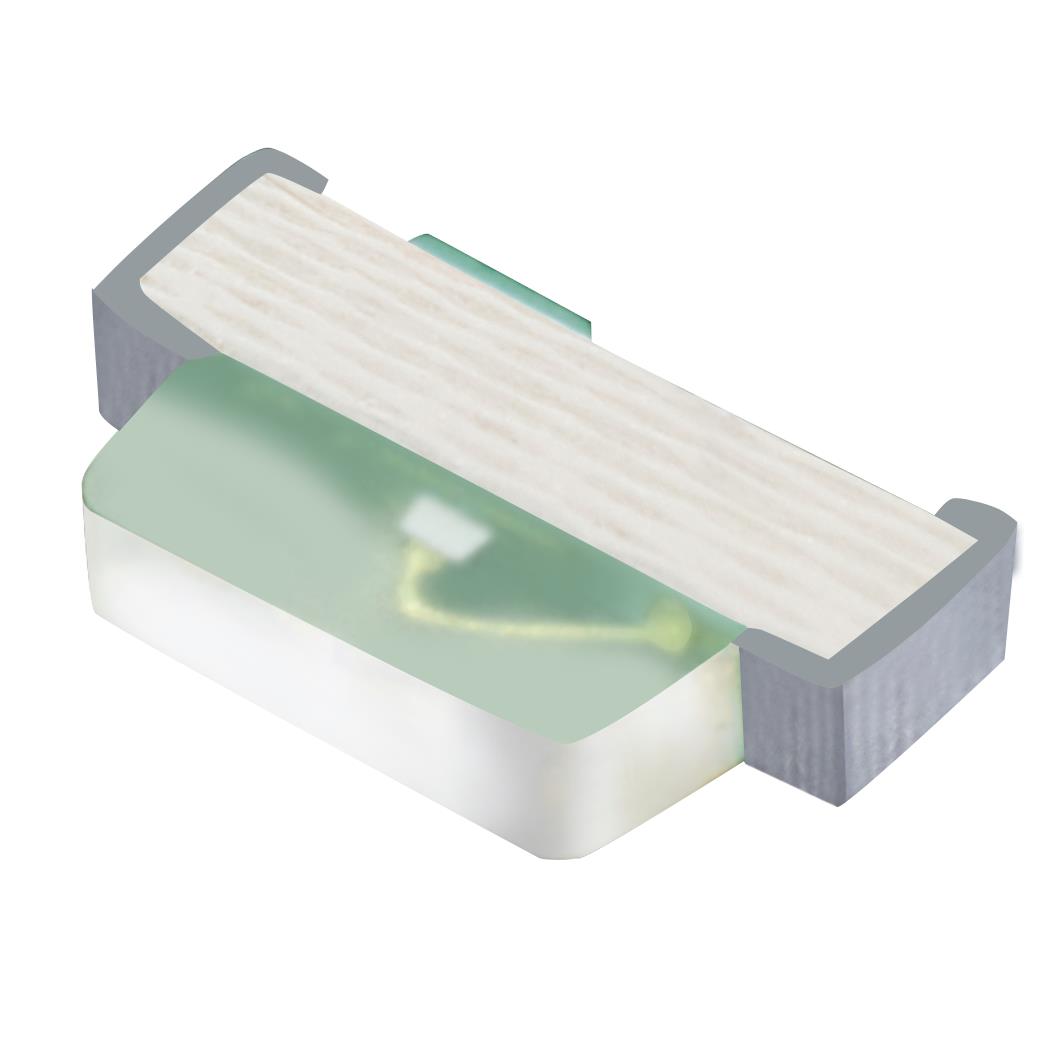

The APGA1602ZGCK is a single-color green surface-mount LED manufactured by Kingbright. It features a rectangular lens with dimensions of 1.6 mm length, 0.2 mm width, and 0.75 mm height. The device emits light at a peak wavelength of 571 nm with a water-clear lens transparency. Electrical characteristics include a forward current of 20 mA, a forward voltage of 2.05 V, and a power rating of 48 mW. The typical luminous intensity is 30 mcd, operating within a temperature range of -40°C to +85°C.
Feature Summary
- Ultra-compact 1.6x0.2mm SMD package design for high-density mounting
- Green emission source utilizing AlGaInP technology on GaAs substrate
- Water-clear rectangular lens for consistent optical transmission
Applications
- Backlighting for thin electronic devices
- Status indicators in compact consumer electronics
- LED arrays requiring minimal footprint
Procurement Notes
Verify the specific suffix 'ZGCK' against the official Kingbright datasheet to confirm lens type and binning specifications. Ensure compatibility with reflow soldering profiles specified for moisture sensitivity level 3 components. Confirm RoHS compliance status through the manufacturer's latest documentation before integration into production.
Selection Notes
Select this component when board space constraints require a 0603 metric footprint with reduced width. Compare luminous intensity requirements against the 30 mcd typical value. Consider the 2.05 V forward voltage drop for circuit design calculations. Verify that the rectangular lens shape meets the optical distribution needs of the application.
Part Context
This part belongs to the Minikin-Air series from Kingbright, designed for applications demanding extremely small form factors. It complements other standard-sized LEDs like the APT1608 series by offering a significantly narrower profile while maintaining reliable green illumination capabilities for modern miniaturized hardware.
Replacement Considerations
Direct substitutes may include other 1.6x0.2mm green SMD LEDs from Kingbright such as the APGA1602CGC/KA, provided electrical parameters and mechanical dimensions match exactly. Cross-reference datasheets for any differences in lens color or viewing angle.
