APGB0607B7G22C
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters

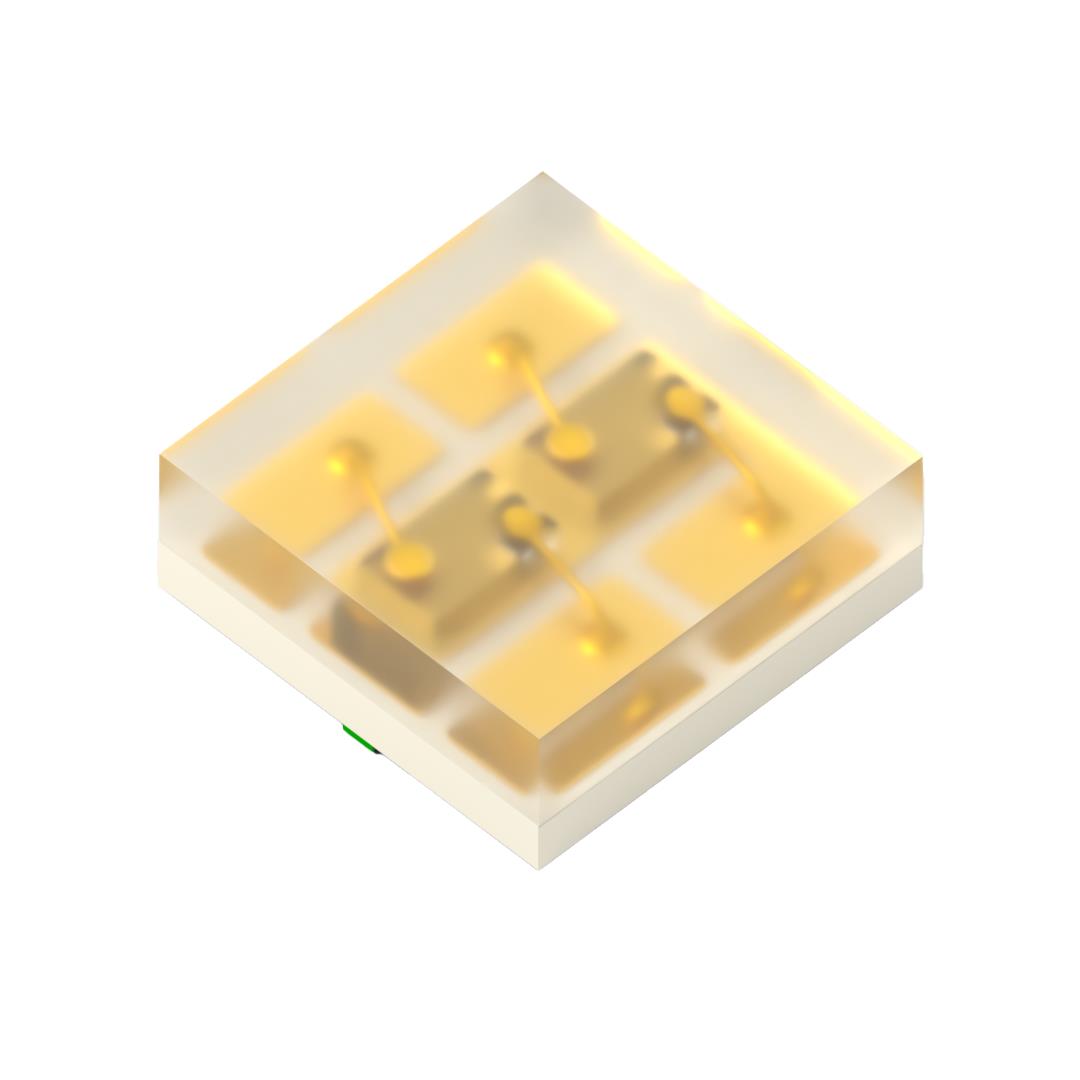

- Description：0.65X0.65MM (0202) BI-COLOR BLUE
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Blue, Green
- Configuration：Independent
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：40mcd Blue, 200mcd Green
- Lens Style：Square with Flat Top
- Lens Size：0.66mm
- Voltage - Forward (Vf) (Typ)：2.9V Blue, 2.85V Green
- Current - Test：5mA Blue, 5mA Green
- Viewing Angle：140°
- Mounting Type：Surface Mount
- Wavelength - Dominant：468nm Blue, 525nm Green
- Wavelength - Peak：463nm Blue, 515nm Green
- Features：-
- Package / Case：4-SMD, No Lead
- Supplier Device Package：4-SMD
- Size / Dimension：0.65mm L x 0.65mm W
- Height (Max)：0.30mm
- Grade：-
- Qualification：-
Download product information
Overview
The APGB0607B7G22C is a Kingbright bi-color surface-mount LED featuring blue and green emitters in a 0.65 mm x 0.65 mm package with a 0.30 mm height. It utilizes InGaN technology for high intensity output at low forward currents. The device operates within a temperature range of -40°C to +85°C and offers a 140° viewing angle. Electrical characteristics include a forward voltage of 2.9 V for blue and 2.85 V for green, with optical intensities of 40 mcd and 200 mcd respectively.
Feature Summary
- Ultra-low profile design suitable for space-constrained portable electronics
- Individual color driving capability for flexible circuit design
- High luminous intensity output using advanced InGaN semiconductor technology
- Wide 140-degree viewing angle for enhanced visibility
Applications
- Status indicators for smart home appliances
- Backlighting for wearable and portable devices
- Consumer electronics status signaling
- Healthcare equipment indicator lights
Procurement Notes
Verify moisture sensitivity level (MSL 3) requirements before storage and handling. Confirm RoHS compliance status for specific regional regulations. Ensure proper ESD precautions during assembly due to the small form factor. Validate soldering profiles against manufacturer datasheet specifications to prevent thermal damage to the miniature components.
Selection Notes
Select this component when ultra-compact dimensions are critical for dense PCB layouts. The individual drive capability allows independent control of blue and green states. Consider the 140-degree viewing angle for applications requiring broad visibility. Verify that the 0.30 mm height fits within strict mechanical clearance constraints of the target enclosure.
Part Context
This part belongs to Kingbright's second-generation miniature 0202 SMD LED series. The series focuses on delivering high performance in minimal footprints. It replaces larger packages while maintaining robust optical output. The design supports modern trends toward miniaturization in consumer and industrial electronics.
Replacement Considerations
APGF0607G32B33R23-05 provides RGB functionality in the same footprint but differs in pin configuration and color options. APGB0607G22R23C offers green and red colors within the identical package dimensions. Verify electrical compatibility and mechanical fit before substituting.
