Product Detailed Parameters
- Description：LED RGB CLEAR 4SMD
- Series：HELI Colour
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red, Green, Blue (RGB)
- Configuration：Common Anode
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：30mcd Red, 80mcd Green, 23mcd Blue
- Lens Style：Square with Flat Top
- Lens Size：1.00mm
- Voltage - Forward (Vf) (Typ)：2V Red, 3V Green, 2.9V Blue
- Current - Test：5mA Red, 5mA Green, 5mA Blue
- Viewing Angle：130° Red, 150° Green, 150° Blue
- Mounting Type：Surface Mount
- Wavelength - Dominant：624nm Red, 527nm Green, 467nm Blue
- Wavelength - Peak：632nm Red, 518nm Green, 461nm Blue
- Features：-
- Package / Case：0404 (1010 Metric)
- Supplier Device Package：4-SMD
- Size / Dimension：1.00mm L x 1.00mm W
- Height (Max)：0.25mm
- Grade：-
- Qualification：-
Download product information
Overview

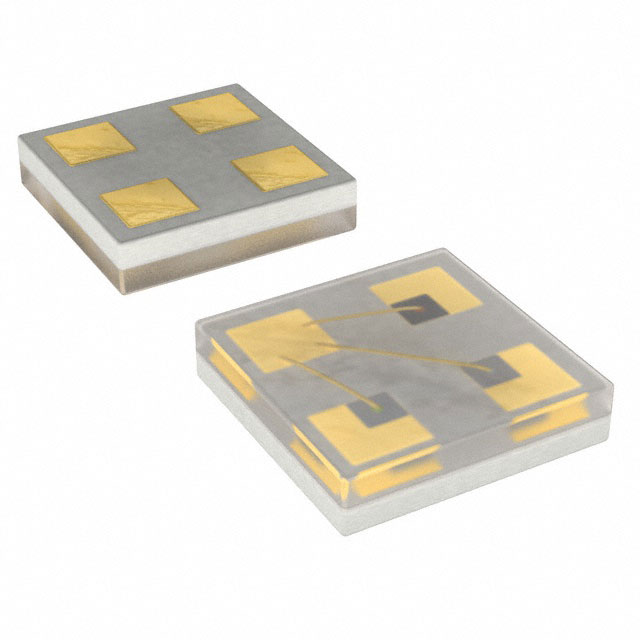

The APGF1011SEEPBVGC-TT is a full-color surface mount LED manufactured by Kingbright. It features a compact 1 x 1 x 0.2 mm package designed for low power consumption applications. The device utilizes a common anode configuration and emits red, green, and blue light with specified wavelengths of 632 nm, 515 nm, and 460 nm respectively. Forward voltages are rated at 2.85 V, 2.8 V, and 1.95 V, with a forward current of 5 mA. The component offers a wide viewing angle of 150 degrees and operates within a temperature range of -40 °C to +85 °C.
Feature Summary
- Low power consumption design suitable for energy-efficient circuits
- Compact 1x1x0.2mm footprint for space-constrained layouts
- Wide 150-degree viewing angle for broad visibility
- Water clear rectangular lens for optimal light transmission
Applications
- Status indicators in portable electronics
- Backlighting for small displays
- Consumer device interface lighting
- Industrial control panel indicators
Procurement Notes
Verify the specific suffix TT against the manufacturer's official datasheet to confirm tape-and-reel packaging specifications. Ensure compatibility with standard SMT reflow profiles and check moisture sensitivity level requirements before handling. Confirm RoHS compliance status directly from the latest Kingbright documentation to meet regulatory standards.
Selection Notes
Select this component when a minimal footprint is required alongside multi-color capability. The 5 mA forward current rating makes it suitable for battery-operated devices where power efficiency is critical. Verify that the common anode configuration aligns with the target circuit design logic and driver capabilities.
Part Context
This part belongs to Kingbright's surface mount LED portfolio, specifically the APGF series known for ultra-low profile dimensions. It serves as a compact alternative to larger through-hole or standard SMD LEDs, enabling higher density PCB designs while maintaining reliable optical performance in consumer and industrial sectors.
Replacement Considerations
Direct substitutes must match the 1010 (1x1mm) package size, 0.2mm height, common anode configuration, and RGB wavelength specifications. Verify electrical parameters such as forward voltage and current ratings to ensure circuit compatibility without modification.
