APGF1012GBRC-07
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：LED RGB CLEAR 4SMD
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red, Green, Blue (RGB)
- Configuration：Common Anode
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：30mcd Red, 220mcd Green, 23mcd Blue
- Lens Style：Square with Flat Top
- Lens Size：1.00mm
- Voltage - Forward (Vf) (Typ)：1.95V Red, 2.85V Green, 2.8V Blue
- Current - Test：5mA
- Viewing Angle：150°
- Mounting Type：Surface Mount
- Wavelength - Dominant：624nm Red, 525nm Green, 465nm Blue
- Wavelength - Peak：632nm Red, 515nm Green, 460nm Blue
- Features：-
- Package / Case：4-SMD, No Lead
- Supplier Device Package：4-SMD
- Size / Dimension：1.00mm L x 1.00mm W
- Height (Max)：0.30mm
- Grade：-
- Qualification：-
Download product information
Overview

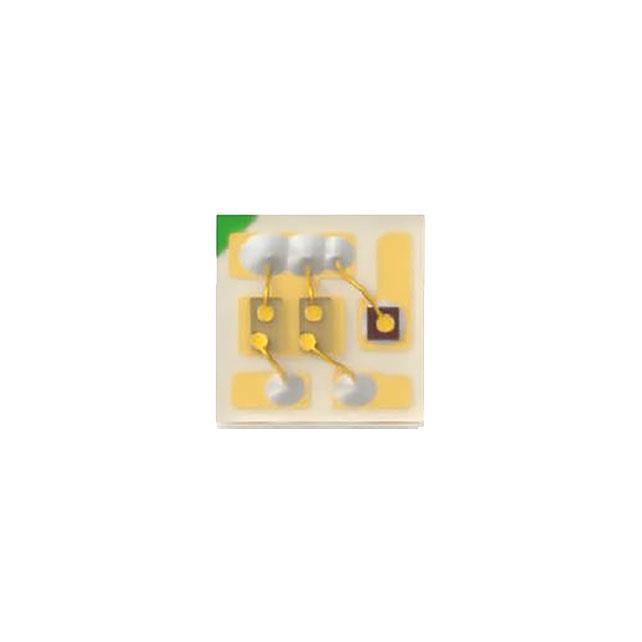

The APGF1012GBRC-07 is a tri-color surface-mount LED component manufactured by Kingbright. It utilizes a common anode configuration within a 0404 (1010 metric) package, measuring 1 mm in length and width with a height of 0.25 mm. The device emits red, green, and blue light at peak wavelengths of 632 nm, 515 nm, and 460 nm respectively. Electrical specifications include forward voltages of 2.8 V for red, 2.85 V for green, and 1.95 V for blue, driven by a maximum forward current of 5 mA. Optical performance features luminous intensities of 23 mcd, 30 mcd, and 220 mcd for the respective colors. The unit operates reliably between -40°C and +85°C.
Feature Summary
- Integrates red, green, and blue emitters into a single compact surface-mount package for multi-color output.
- Features a water-clear rectangular lens to maximize light transmission efficiency.
- Designed for low-current operation compatible with standard digital logic interfaces.
Applications
- Status indication on electronic circuit boards
- Backlighting for small consumer electronics displays
- Visual signaling in automotive interior lighting systems
Procurement Notes
Verify the specific ordering suffix to confirm the exact binning codes for wavelength and intensity matching required by your design. Ensure that the moisture sensitivity level is addressed during storage and reflow soldering processes according to the manufacturer's handling guidelines. Confirm RoHS compliance status for regulatory adherence in target markets.
Selection Notes
Select this component when space constraints require a multi-color indicator within a 0404 footprint. Consider the common anode architecture for simplified driver circuitry compared to common cathode alternatives. Evaluate the viewing angle and intensity requirements against the specified luminous intensity values to ensure visibility under ambient lighting conditions.
Part Context
Kingbright produces a wide range of LED components, including discrete indicators and display modules. The APGF1012GBRC-07 belongs to the multi-color LED category, designed for applications requiring color mixing or distinct color states from a single physical location. This product line supports modern electronics manufacturing through surface-mount technology compatibility.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching the 0404 package dimensions, common anode configuration, and specific wavelength/intensity characteristics of the red, green, and blue elements.
