Product Detailed Parameters
- Description：1.6X0.8MM (0603) YELLOW SMD LED
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Yellow
- Configuration：Independent
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：150mcd
- Lens Style：Rectangle with Flat Top
- Lens Size：1.20mm x 0.80mm
- Voltage - Forward (Vf) (Typ)：2V
- Current - Test：20mA
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：590nm
- Wavelength - Peak：590nm
- Features：-
- Package / Case：0603 (1608 Metric)
- Supplier Device Package：603
- Size / Dimension：1.60mm L x 0.80mm W
- Height (Max)：0.75mm
- Grade：-
- Qualification：-
Download product information
Overview

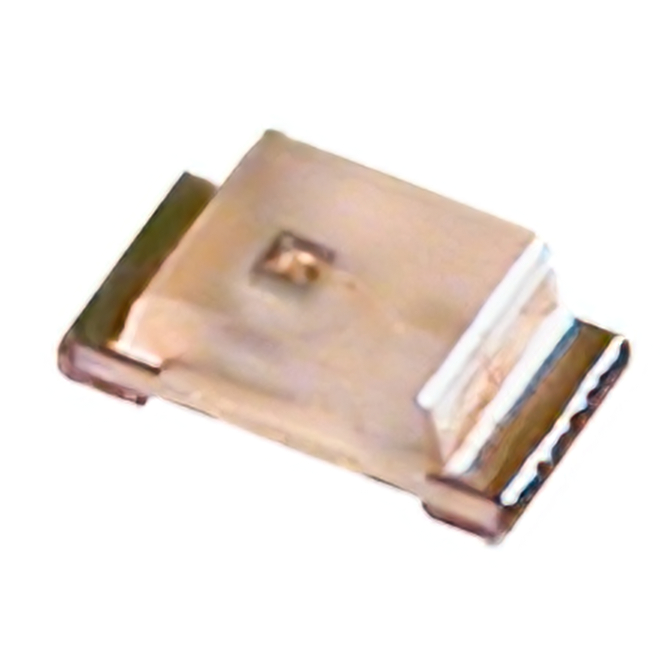

APH1608SYCK is a single-color surface-mount LED from Kingbright, emitting yellow light at a peak wavelength of 590 nm. It features a water-clear lens with a dome shape and a viewing angle of 120 degrees. The component operates with a forward voltage of 2 V at a test current of 20 mA, dissipating up to 75 mW. Its physical dimensions are 1.6 mm in length, 0.8 mm in width, and 0.75 mm in height. The device provides a luminous intensity of 150 mcd and complies with RoHS3 standards.
Feature Summary
- Yellow emission with 590 nm peak wavelength
- Water-clear dome-shaped lens for wide visibility
- Standard 0603 (1608 metric) SMD package
- RoHS3 compliant construction
Applications
- General-purpose electronic status indication
- Consumer device front panel signaling
- Industrial control board monitoring
Procurement Notes
Verify the manufacturer part number APH1608SYCK against official Kingbright documentation to confirm specifications. Ensure compatibility with standard reflow soldering profiles for moisture-sensitive devices. Confirm that the required packaging format aligns with production needs. Cross-reference datasheet parameters such as forward voltage and luminous intensity before integration.
Selection Notes
Select this component when a compact yellow indicator is required for space-constrained designs. The 0603 footprint allows for high-density PCB layouts. Consider the 120-degree viewing angle for broad visibility applications. Verify thermal management requirements against the 75 mW power dissipation limit during continuous operation.
Part Context
This component belongs to the Kingbright 1608 series of super thin surface-mount LEDs. It shares the standard 1.6 x 0.8 mm footprint common across many SMD indicators. The series offers various colors and lens configurations to suit different visual signaling requirements in modern electronics.
Replacement Considerations
KPT-1608SYCK is listed as an alias for this part number. Verify electrical and mechanical compatibility before substituting with other yellow 0603 LEDs.
