APHCM2012ZGC/G-F01

LED Indication - Discrete Overview

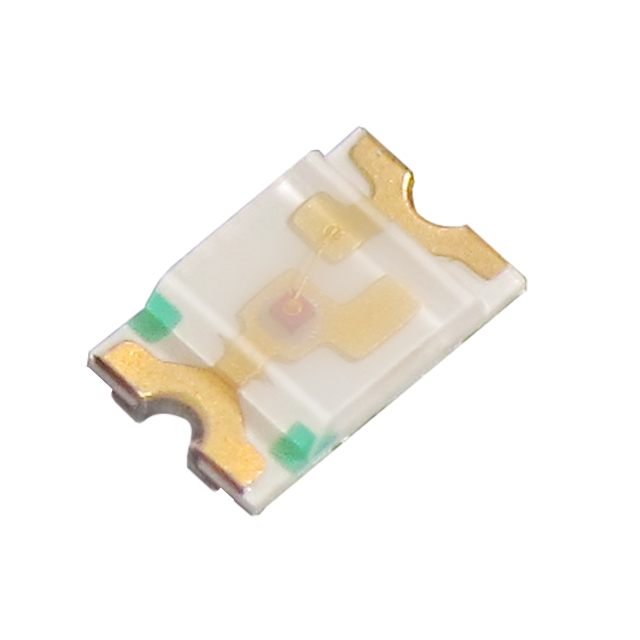

The APHCM2012ZGC/G-F01 is a surface-mount bi-color LED from Kingbright's APHCM-2012 series. It features a compact 2.0 x 1.25 x 0.45 mm package with a wide viewing angle. The device emits green light at 525nm and red light at 630nm. Key electrical parameters include a forward voltage of 2.5V, maximum forward current of 185mA, and power dissipation of 75mW. Luminous intensity ranges from 500 to 800 mcd for the green segment at 20mA. It complies with RoHS standards and has a moisture sensitivity level of 3.

LED Indication - Discrete Feature Summary

• Ultra-compact low-profile design suitable for dense circuit layouts
• Bi-color functionality providing distinct green and red emission in a single package
• Wide viewing angle for enhanced visibility across various orientations

LED Indication - Discrete Applications

• Status indication in consumer electronics
• Indicator lights in automotive dashboards
• Signal indicators in industrial control panels

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm lot codes and moisture sensitivity levels upon receipt. Ensure proper storage conditions are maintained to preserve lead integrity and prevent oxidation before soldering.

LED Indication - Discrete Selection Notes

Select this component when space constraints require a dual-color indicator within a minimal footprint. Consider the specific luminous intensity requirements for both colors. Evaluate thermal management needs given the 75mW power dissipation limit in confined spaces.

LED Indication - Discrete Part Context

This part belongs to Kingbright's APHCM-2012 series, designed for applications requiring high reliability and durability. The series utilizes advanced materials to ensure electrical stability and resistance to environmental factors, making it suitable for demanding electronic environments.

LED Indication - Discrete Replacement Considerations

Direct substitutes may include other 2012 package bi-color LEDs from Kingbright such as APHCM2012ZRC/G-F01. Verify pin compatibility and spectral characteristics before substitution.
