APHHS1005VGC/A

LED Indication - Discrete Overview

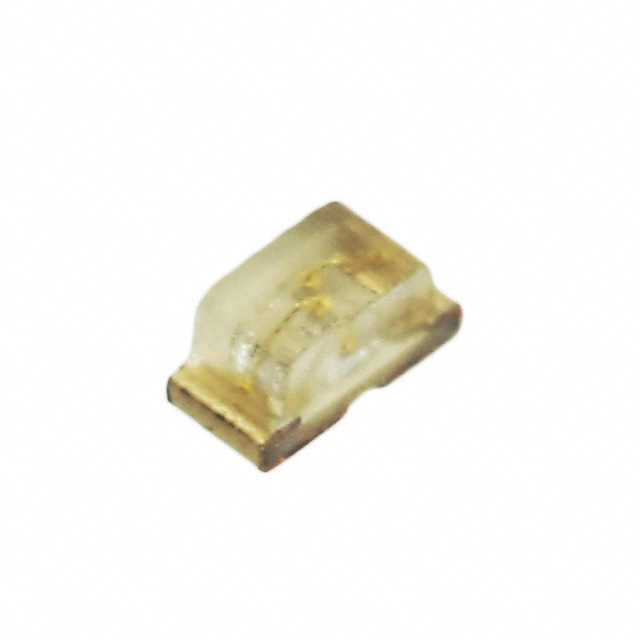

The Kingbright APHHS1005VGC/A is a single-color surface-mount LED in a 0402 (1005 metric) package. It emits green light with a peak wavelength of 530 nm and a luminous intensity of 150 mcd at a forward current of 20 mA. The device features a water-clear lens, a viewing angle of 120 degrees, and a forward voltage of 2.2 V. It operates within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

• Compact 0402 surface-mount form factor for high-density circuit designs
• Water-clear lens material for optimized light transmission
• Wide 120-degree viewing angle for broad visibility

LED Indication - Discrete Applications

• General indicator lighting on electronic devices
• Backlighting applications requiring low profile components
• Status indication in consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against official Kingbright documentation to ensure correct lens type and binning. Confirm moisture sensitivity level requirements for storage and handling procedures prior to assembly. Cross-reference the datasheet for any recent updates to mechanical dimensions or electrical characteristics.

LED Indication - Discrete Selection Notes

Select this component when a compact green indicator is required for space-constrained PCB layouts. Ensure the operating current does not exceed the rated maximum to maintain longevity. Verify compatibility with automated pick-and-place equipment due to the small package size.

LED Indication - Discrete Part Context

This part belongs to the APHHS series of standard SMD LEDs from Kingbright. The series offers various colors and lens options in the 0402 footprint, providing designers with flexible solutions for modern electronic products requiring reliable surface-mounted illumination sources.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other Kingbright 0402 green LEDs such as the APHHS1005SECK, provided electrical parameters like forward voltage and luminous intensity meet the design requirements. Always verify pinout and mechanical tolerances before substitution.
