APL3015ZGCK-F01

LED Indication - Discrete Overview

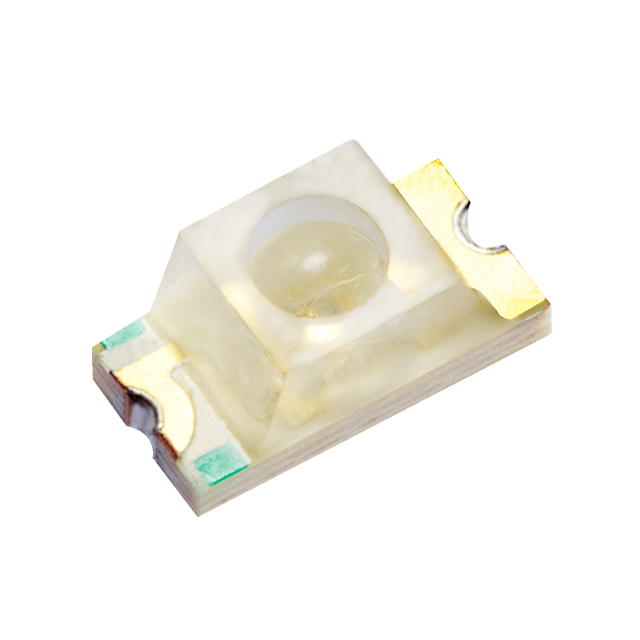

The Kingbright APL3015ZGCK-F01 is a surface-mount green LED in the KPL-3015 series. It features a 3.0 mm x 1.5 mm rectangular package with a water-clear lens. Key electrical parameters include a forward voltage of 2.5 V and a maximum power dissipation of 75 mW. The device emits light at a peak wavelength of 570 nm with a luminous intensity of 120 mcd. It has a viewing angle of 70 degrees and operates within a temperature range of -40°C to +85°C. The component is RoHS compliant and designed for SMD/SMT mounting.

LED Indication - Discrete Feature Summary

• Compact 3.0 mm x 1.5 mm surface-mount form factor suitable for space-constrained designs
• Water-clear lens provides high transparency for efficient light transmission
• RoHS compliant construction supports environmentally regulated manufacturing standards

LED Indication - Discrete Applications

• General indicator lighting in consumer electronics
• Status indication on portable devices
• Backlighting applications requiring low profile components

LED Indication - Discrete Procurement Notes

Verify the specific suffix F01 against manufacturer documentation to confirm reel packaging specifications. Ensure moisture sensitivity level 3 handling protocols are followed during storage and assembly. Cross-reference the exact part number with authorized distributors to avoid counterfeit components. Confirm that the green color variant matches the design requirements before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a low-profile green indicator is required for surface-mount assemblies. The 70-degree viewing angle offers adequate visibility for standard panel applications. Consider the 2.5 V forward voltage drop for circuit design calculations. Ensure the 120 mcd intensity meets the visibility requirements of the target environment. Verify compatibility with automated pick-and-place equipment due to the small package dimensions.

LED Indication - Discrete Part Context

This LED belongs to the Kingbright KPL-3015 series, which focuses on compact surface-mount solutions. The series utilizes standard chip LED technology optimized for high-volume production. The 3030-style footprint allows for dense PCB layouts while maintaining reliable thermal performance. This specific model represents a standard green emission variant within the broader product family.

LED Indication - Discrete Replacement Considerations

APL3015CGCK is listed as a related model in distributor catalogs. Verify electrical equivalence and pinout compatibility before substitution. Check datasheet revisions for any changes in luminous intensity or wavelength tolerances.
