APSD00080750100K00

Fixed Inductors Overview

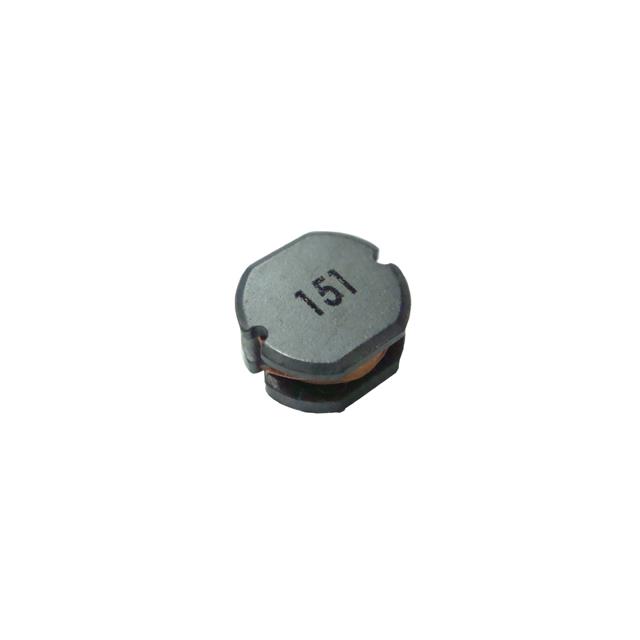

The APSD00080750100K00 is an unshielded surface-mount power inductor from Pulse Electronics, designed for automotive applications. It features a ferrite core and measures 7.8 mm x 7 mm x 5 mm. The component provides an inductance of 10 uH with a tolerance of 10%. It has a maximum DC resistance of 240 mOhms and a saturation current of 940 mA. The operating temperature range spans from -40 C to +125 C. It is AEC-Q200 qualified and supplied in a reel package.

Fixed Inductors Feature Summary

• AEC-Q200 qualified for automotive reliability
• Unshielded ferrite core construction
• Surface-mount design for PCB integration

Fixed Inductors Applications

• Automotive electronics systems
• Power management circuits
• Signal filtering applications

Fixed Inductors Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with target designs. Confirm that the unshielded configuration meets electromagnetic interference requirements for the intended application. Check for any recent updates to the AEC-Q200 qualification status or RoHS compliance details before finalizing procurement decisions.

Fixed Inductors Selection Notes

Select this component when an unshielded inductor is required for space-constrained automotive designs. The 10 uH value and 940 mA saturation current suit moderate power filtering needs. Ensure the 7.8 mm x 7 mm footprint fits the PCB layout constraints. Consider thermal performance within the specified -40 C to +125 C range for harsh environments.

Fixed Inductors Part Context

This part belongs to the APSD series of power inductors from Pulse Electronics. The series offers various inductance values and physical sizes to support diverse electronic circuit requirements. Pulse Electronics, now part of YAGEO, specializes in passive and magnetic components for global markets including automotive and industrial sectors.

Fixed Inductors Replacement Considerations

Cross-reference with other APSD series variants for different inductance values if electrical parameters do not match. Verify mechanical dimensions and pinout compatibility before substituting with similar unshielded SMD inductors from other manufacturers.
