APT2012PGW

LED Indication - Discrete Overview

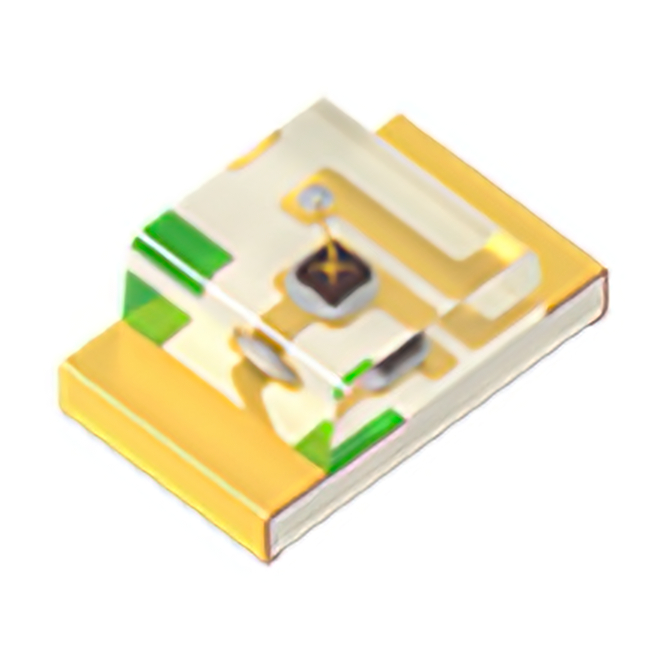

The Kingbright APT2012PGW is a surface-mount single-color LED in the 0805 (2012 metric) package. It emits green light with a peak wavelength of 555 nm and a typical forward voltage of 2.25 V at a test current of 20 mA. The component features a rectangular lens measuring 1.30 mm x 1.25 mm with a viewing angle of 120 degrees. It has a maximum power dissipation of 105 mW and complies with RoHS standards.

LED Indication - Discrete Feature Summary

• Green illumination with 555 nm peak wavelength
• Surface mount construction in 0805 package
• Rectangular water clear lens design

LED Indication - Discrete Applications

• Panel status indication
• Instrument front panels
• Consumer electronics indicators

LED Indication - Discrete Procurement Notes

Verify the specific suffix against the manufacturer datasheet to confirm optical characteristics. Ensure compatibility with standard SMD reflow profiles. Confirm RoHS compliance status for regulatory requirements. Check moisture sensitivity level handling procedures during storage and assembly.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a compact green indicator in limited space. Consider the 120-degree viewing angle for visibility requirements. Evaluate thermal management needs relative to the 105 mW power rating. Compare luminous intensity specifications against ambient lighting conditions.

LED Indication - Discrete Part Context

This part belongs to Kingbright's APT series of surface-mount LEDs. The 0805 form factor provides a balance between size and brightness for general-purpose signaling. It serves as a standard solution for modern electronic device manufacturing where space constraints are critical.

LED Indication - Discrete Replacement Considerations

Consult official substitution guides for direct replacements. Verify pinout compatibility and electrical parameters before swapping components.
