APT2012PR54F/A-SC

LED Indication - Discrete Overview

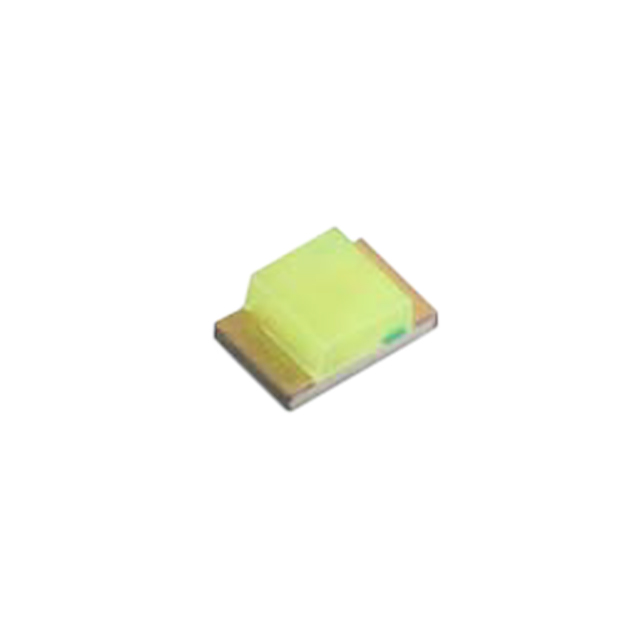

The Kingbright APT2012PR54F/A-SC is a single-color ice blue diffused surface-mount LED in a 0805 (2012 metric) package. It features a rectangular lens and two pins for SMD installation. The component utilizes GaInN semiconductor material to emit light at a peak wavelength of 470 nm. Key electrical parameters include a maximum forward voltage of 3.6V and a radiant intensity of 15 mW/sr. It operates with a half-intensity angle of 120 degrees and complies with CIE 127-2007 standards.

LED Indication - Discrete Feature Summary

• Emits ice blue light via GaInN semiconductor technology
• Features a diffused rectangular lens for wide viewing angles
• Designed for standard surface-mount device (SMD) assembly

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Backlighting for control panel indicators
• Visual signaling in consumer electronics devices

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against the manufacturer's current datasheet, as ordering codes may define lens type or packaging variations. Confirm RoHS compliance status and moisture sensitivity level requirements prior to procurement to ensure compatibility with assembly processes. Check for obsolescence notices or product change notifications that may affect long-term supply availability.

LED Indication - Discrete Selection Notes

Select this component when an ice blue indicator is required in a compact 0805 footprint. Ensure the system design accommodates the specified 3.6V maximum forward voltage drop. Verify that the 15 mW/sr radiant intensity meets visibility requirements for the intended application environment. Consider thermal management constraints associated with surface-mount LED operation.

LED Indication - Discrete Part Context

This part belongs to Kingbright's discrete LED indication series, specifically within the 2012 metric package family. It serves as a visual signal component distinct from high-power lighting or infrared communication LEDs. The product line focuses on standard color indicators for general-purpose electronic equipment.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official Kingbright resources for potential cross-references or updated equivalents if this component is obsolete.
