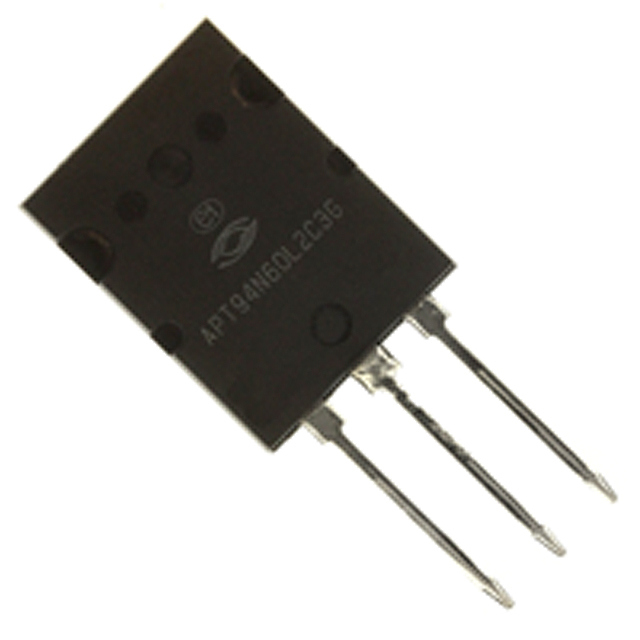

APT94N60L2C3G

Description：MOSFET N-CH 600V 94A 264 MAX
Series：-
Mfr：Microchip Technology
Package：Tube

SKU:c61ab46dbf2b Category: Single FETs, MOSFETs Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APT94N60L2C3G is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Microchip Technology. Its product description is MOSFET N-CH 600V 94A 264 MAX. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for APT94N60L2C3G

Description：MOSFET N-CH 600V 94A 264 MAX
Series：-
Mfr：Microchip Technology
Package：Tube
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：600 V
Current - Continuous Drain (Id) @ 25°C：94A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：10V
Rds On (Max) @ Id, Vgs：35mOhm @ 60A, 10V
Vgs(th) (Max) @ Id：3.9V @ 5.4mA
Gate Charge (Qg) (Max) @ Vgs：640 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：13600 pF @ 25 V
FET Feature：-
Power Dissipation (Max)：833W (Tc)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Through Hole
Supplier Device Package：264 MAX™ [L2]
Package / Case：TO-264-3, TO-264AA

Single FETs, MOSFETs datasheet and documents for APT94N60L2C3G

APT94N60L2C3G

Single FETs, MOSFETs Overview

The APT94N60L2C3G is a Superjunction N-channel MOSFET rated for 600 V and 94 A continuous drain current. It utilizes two parallel MOSFET dies to achieve high performance with lower switching losses and improved thermal capabilities. The device operates within a temperature range of -55 °C to +150 °C and dissipates up to 833 W of power. Key electrical specifications include a gate charge (Qg) of 505 nC and a maximum pulsed drain current of 282 A, packaged in a TO-264 MAX housing.

Single FETs, MOSFETs Feature Summary

Superjunction technology enables reduced switching losses and enhanced thermal management for compact system designs.
Dual die construction provides high current handling capability and robust performance under demanding conditions.

Single FETs, MOSFETs Applications

High-efficiency power conversion systems
Industrial switching applications
Amplifying circuits requiring high voltage tolerance

Single FETs, MOSFETs Procurement Notes

This component is officially classified as obsolete by Microchip Technology and is no longer manufactured. Procurement requires an approved quote through authorized channels. Verify availability of recommended substitutes such as the APT106N60LC6 before initiating orders, as direct supply is discontinued.

Single FETs, MOSFETs Selection Notes

Select this part only if legacy compatibility or specific historical design parameters are required. Due to its obsolete status, engineers should evaluate modern equivalents like the APT106N60LC6 for new designs. Ensure that the TO-264 MAX package footprint and pinout align with existing PCB layouts if retrofitting.

Single FETs, MOSFETs Part Context

Manufactured by Microchip Technology, formerly associated with Microsemi discrete components. This device belongs to the APT series of Superjunction MOSFETs designed for industrial and automotive markets. It represents a transition point in Microchip's portfolio following acquisitions, now integrated into their broader power semiconductor offerings.

Single FETs, MOSFETs Replacement Considerations

The APT106N60LC6 is listed as a manufacturer-recommended substitute. Verify pin compatibility and thermal characteristics when transitioning from this obsolete part to ensure circuit integrity without redesigning the entire power stage.
