ARRKP7059-S915B

Antennas RF Overview

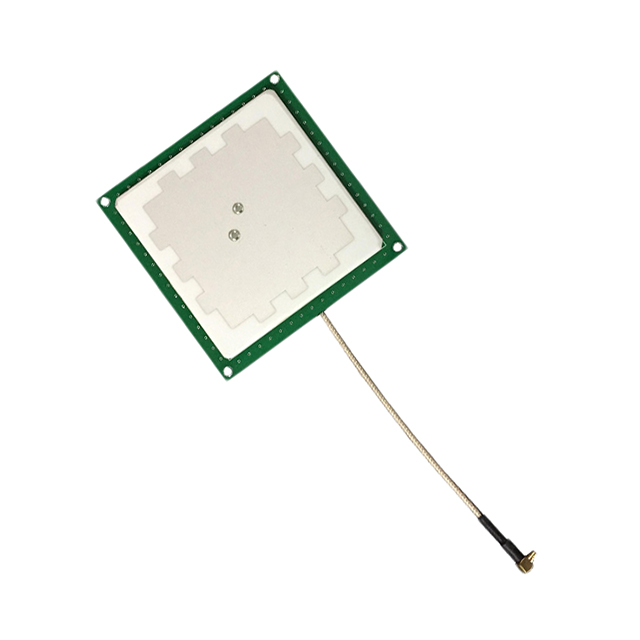

The ARRKP7059-S915B is a ceramic UHF RFID patch antenna manufactured by Abracon LLC. It operates within the frequency range of 902 MHz to 928 MHz, with a center frequency of 915 MHz. The device provides a gain of 4 dBi and features an MMCX-JW connector for integration. Its physical dimensions are 70 mm x 70 mm x 5.9 mm. The component is designed for surface mount installation and complies with RoHS and REACH standards.

Antennas RF Feature Summary

• Ceramic construction optimized for UHF RFID applications
• Integrated MMCX-JW connector for direct cable attachment
• Surface mount design facilitating easy installation

Antennas RF Applications

• UHF RFID reader systems
• Broadcast transmission antennas
• General purpose RF communication devices

Antennas RF Procurement Notes

Verify that the specific suffix S915B matches the required 902-928 MHz operational band. Confirm the MMCX-JW connector type aligns with existing cabling infrastructure. Ensure surface mount footprint compatibility with the target PCB layout before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when a compact 4 dBi gain is required for UHF RFID environments. The fixed MMCX connector simplifies assembly compared to flexible options. Consider the 70x70 mm form factor against available enclosure space constraints during the initial design phase.

Antennas RF Part Context

This component belongs to Abracon's internal and embedded antenna portfolio. It serves as a specialized solution for UHF frequency bands, distinct from general-purpose broadband antennas. The product line focuses on integrated ceramic patch designs suitable for industrial and commercial identification systems.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are documented in the provided source material.
