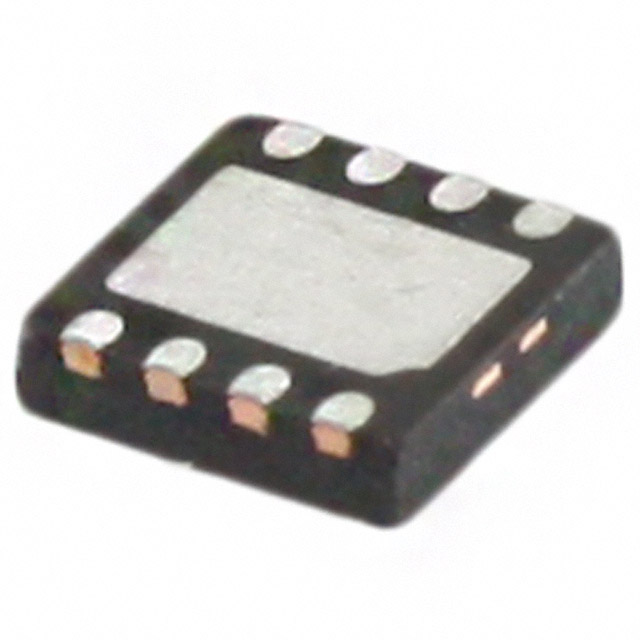

AS1364-BTDT-AD

$1.50

Description：IC REG LINEAR POS ADJ 1A 8-TDFN
Series：-
Mfr：ams-OSRAM USA INC.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:26eff79f1048 Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: ams-OSRAM USA INC.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AS1364-BTDT-AD is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists ams-OSRAM USA INC.. Its product description is IC REG LINEAR POS ADJ 1A 8-TDFN. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for AS1364-BTDT-AD

Description：IC REG LINEAR POS ADJ 1A 8-TDFN
Series：-
Mfr：ams-OSRAM USA INC.
Package：Tape & Reel (TR),Cut Tape (CT)
Output Configuration：Positive
Output Type：Adjustable
Number of Regulators：1
Voltage - Input (Max)：5.5V
Voltage - Output (Min/Fixed)：1.2V
Voltage - Output (Max)：5.3V
Voltage Dropout (Max)：0.32V @ 1A
Current - Output：1A
Current - Quiescent (Iq)：150 µA
Current - Supply (Max)：200 µA
PSRR：72dB ~ 46dB (1kHz ~ 100kHz)
Control Features：Enable, Power Good
Protection Features：Over Current, Over Temperature
Operating Temperature：-40°C ~ 85°C
Mounting Type：Surface Mount
Package / Case：8-WDFN Exposed Pad
Supplier Device Package：8-TDFN (3x3)
Grade：-
Qualification：-

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for AS1364-BTDT-AD

AS1364-BTDT-AD

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The AS1364-BTDT-AD is a high-performance linear voltage regulator IC manufactured by ams OSRAM. It provides a positive adjustable output with a maximum current of 1A. The device operates within an input voltage range up to 5.5V and features a typical dropout voltage of 320mV. It offers excellent load regulation at 0.001%/mA and a typical PSRR of 78dB. The component is housed in an 8-TDFN (3x3) package with an exposed pad, suitable for surface mount applications.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Ultra-low dropout voltage design for efficient power management
High precision load regulation capability
Adjustable output voltage configuration
Robust power supply rejection ratio

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Motor control systems
Portable electronic devices
Battery-powered equipment

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the obsolete status of this specific part number before initiating any procurement process. Confirm availability through authorized distributors or secondary market suppliers. Ensure that the 8-TDFN package dimensions match your PCB footprint requirements. Check for RoHS compliance documentation if required for your manufacturing standards.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when a low-noise, adjustable LDO with 1A output current is required. Consider the 320mV dropout voltage for battery-operated applications where headroom is limited. The 8-TDFN package is ideal for space-constrained designs. Verify thermal performance based on the expected load current and ambient temperature conditions.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the AS1364 series of ultra-low dropout linear regulators from ams OSRAM. It is designed for demanding applications requiring stable voltage regulation. The series includes fixed voltage variants such as the AS1364-BTDT-30. The AD suffix indicates the adjustable output version.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult manufacturer documentation for potential cross-references.
