ATIFLTE-3217

Antennas RF Overview

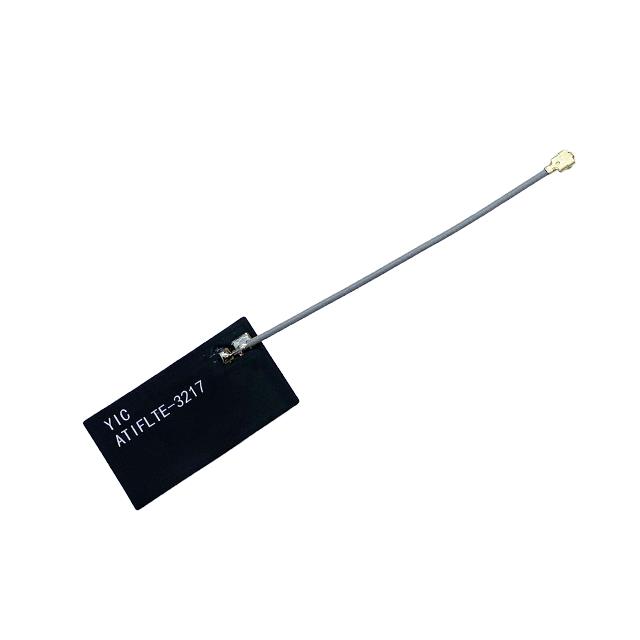

The YIC ATIFLTE-3217 is a flexible printed circuit (FPC) RF antenna designed for 4G and LTE communication applications. It operates across frequency bands of 650MHz to 800MHz, 810MHz to 980MHz, and 1.71GHz to 2.69GHz. The component features a gain of 2dBi and utilizes an I-PEX connector interface. Physically, it measures 60mm in length with a PCB trace configuration, suitable for integration into compact electronic devices requiring reliable wireless connectivity.

Antennas RF Feature Summary

• Supports dual-band operation covering low-band and high-band LTE frequencies
• Utilizes flexible PCB construction for space-constrained designs
• Equipped with adhesive backing for secure internal mounting

Antennas RF Applications

• 4G/LTE mobile devices
• Wireless IoT modules
• Compact cellular communication hardware

Antennas RF Procurement Notes

Verify the specific connector type and adhesive specifications against the official datasheet before procurement. Confirm that the operating frequency ranges align precisely with target network standards. Ensure mechanical dimensions fit within the designated enclosure space. Cross-reference part numbers to avoid confusion with similar models like ATIFLTE-5717-80.

Antennas RF Selection Notes

Select this model when flexible form factors are required for internal antenna placement. Consider the 2dBi gain requirement for signal performance needs. Evaluate the I-PEX interface compatibility with host board connectors. Assess the physical footprint constraints against the 60mm length specification.

Antennas RF Part Context

This component belongs to YIC's series of internal FPC antennas tailored for cellular communications. It addresses the industry demand for low-profile solutions in modern portable electronics. The design prioritizes ease of integration while maintaining necessary RF performance metrics for global LTE networks.

Antennas RF Replacement Considerations

The ATIFLTE-5717-80 is a documented alternative from the same manufacturer. Verify if its dimensional or electrical characteristics meet the specific design requirements as a substitute.
