ATLTE-13196-3.0BT

Antennas RF Overview

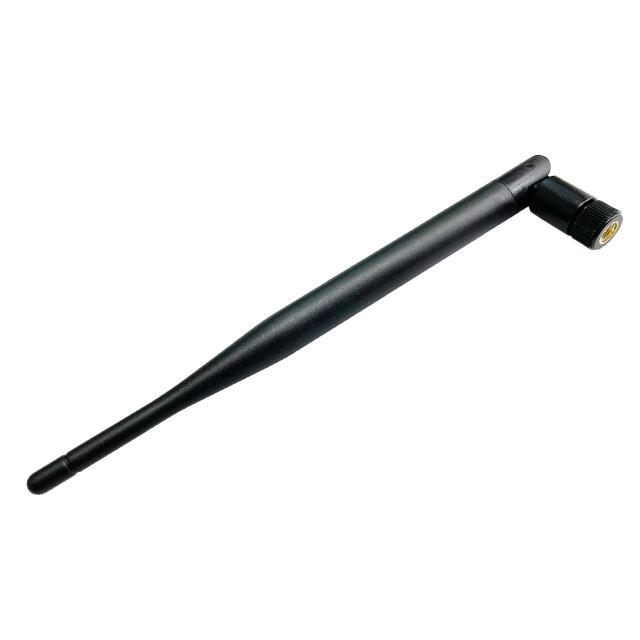

The YIC ATLTE-13196-3.0BT is a 4G/LTE terminal antenna designed for communication applications. It features a linear polarization with a gain of 3dBi. The operational frequency range covers 746MHz to 960MHz and 1.71GHz to 2.69GHz, supporting multiple bands including 853MHz and 2.2GHz center frequencies. The antenna utilizes a male SMA connector for interface. It is constructed as a whip or tilt type antenna suitable for external mounting. The device operates within a temperature range of -40°C to +85°C.

Antennas RF Feature Summary

• Supports 4G and LTE communication standards
• Features linear polarization with 3dBi gain
• Equipped with a male SMA connector
• Operates in wide temperature environments

Antennas RF Applications

• 4G/LTE terminal devices
• External communication equipment
• IoT gateways requiring cellular connectivity

Antennas RF Procurement Notes

Verify the specific datasheet version from YIC International Co Limited or authorized distributors like Transfer Multisort Elektronik. Confirm that the male SMA connector orientation and physical dimensions match the integration requirements. Ensure the operating temperature range meets the environmental specifications of the target application before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when a compact external antenna is required for 4G/LTE terminals. The 3dBi gain provides adequate signal reception for standard deployment scenarios. The dual-band coverage ensures compatibility with various regional cellular networks. Consider the whip form factor for ease of installation on mobile or fixed units.

Antennas RF Part Context

This component belongs to the YIC ATLTE series of RF antennas. It is categorized under GNSS modules and receivers or general RF antennas depending on the distributor classification. The part number indicates specific electrical characteristics and connector types within the manufacturer's portfolio.

Antennas RF Replacement Considerations

Check for direct substitutes within the ATLTE series such as the ATLTE-13240-5.0BT if higher gain is needed. Verify compatibility with existing mounting hardware and cable assemblies. Ensure replacement parts maintain the same SMA connector gender and frequency specifications.
