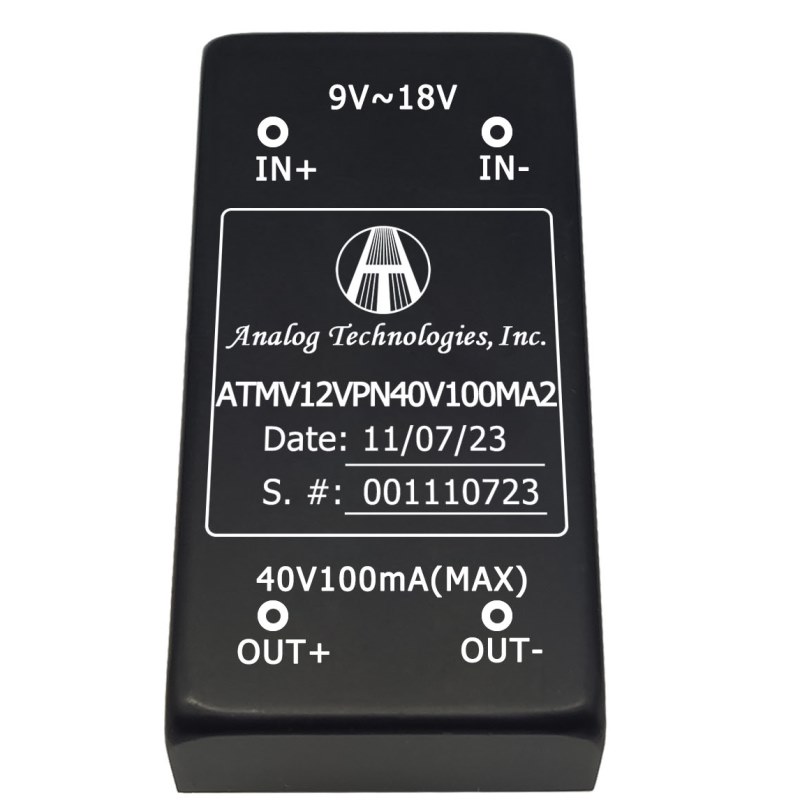

ATMV12VPN40V100MA2

ATMV12VPN40V100MA2 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Analog Technologies, Inc.. Its product description is 8W Isolated DC-DC Power Module. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for ATMV12VPN40V100MA2

• Description：8W Isolated DC-DC Power Module
• Series：-
• Mfr：Analog Technologies, Inc.
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：10V
• Voltage - Input (Max)：18V
• Voltage - Output 1：40V
• Voltage - Output 2：-40V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：100mA, 100mA
• Power (Watts)：8 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：78%
• Mounting Type：Through Hole
• Package / Case：5-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for ATMV12VPN40V100MA2
