ATNR6045M330MT

Fixed Inductors Overview

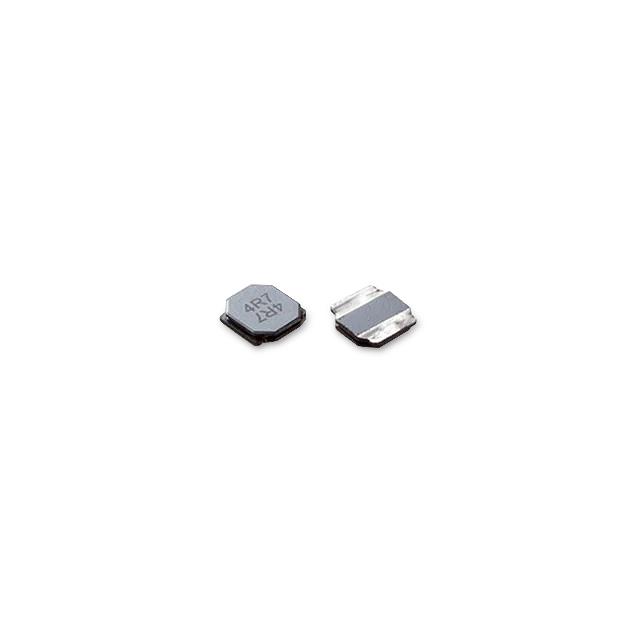

The ATNR6045M330MT is a shielded wirewound power inductor manufactured by Arlitech Electronic Corp. It features an inductance of 33 µH with a tolerance of ±20%. The component has a maximum DC resistance of 210 mOhm and a rated current of 1.4 A. Designed for surface mount technology, it utilizes a 2424 (6060 Metric) package footprint.

Fixed Inductors Feature Summary

• Shielded magnetic design to minimize electromagnetic interference
• Wirewound construction for stable performance
• Surface mount package for automated assembly

Fixed Inductors Applications

• LCD panel industry power supplies
• General purpose power filtering circuits
• DC-DC converter input/output stages

Fixed Inductors Procurement Notes

Verify the manufacturer designation as Arlitech Electronic Corp against official documentation. Confirm the 2424 package dimensions and electrical parameters match the specific application requirements. Ensure the supplier provides valid traceability for this component type.

Fixed Inductors Selection Notes

Select this component when a 33 µH shielded inductor with a 1.4 A rating is required. The 2424 footprint suits space-constrained designs. Verify that the 210 mOhm DCR meets the efficiency targets of the target power circuit.

Fixed Inductors Part Context

Arlitech Electronic Corp identifies as a major inductor supplier, primarily serving the LCD panel market. This part belongs to their fixed inductor lineup, designed for surface mount applications requiring shielding and specific current handling capabilities.

Fixed Inductors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Cross-reference with Murata MDH6045C series only if electrical parameters and mechanical dimensions are verified to be compatible.
