ATPGGBL5R2580A

Antennas RF Overview

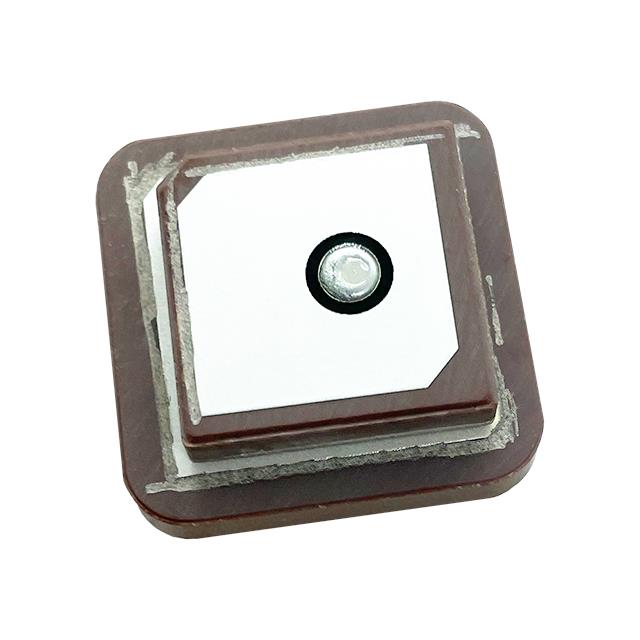

The YIC ATPGGBL5R2580A is a multi-band ceramic patch antenna designed for global navigation satellite systems. It supports five frequency bands: GPS L1 at 1.575 GHz, GPS L5 at 1.176 GHz, GLONASS L1, Galileo E1, and Beidou B1. The component features a maximum height of 8.00 mm and offers gain values ranging from 0.5 dBi to 3.4 dBi across its operational spectrum. It utilizes an adhesive mounting method and includes a pin interface for integration into GNSS receiver modules.

Antennas RF Feature Summary

• Multi-band support for GPS L1/L5, GLONASS, Galileo, and Beidou
• Ceramic patch construction with adhesive mounting
• Compact form factor suitable for embedded applications

Antennas RF Applications

• GNSS navigation modules
• Clock synchronization devices
• Precision positioning systems

Antennas RF Procurement Notes

Verify the specific gain configuration required for the target application, as data indicates varying gain levels (0.5 dBi to 3.4 dBi) within this part number series. Confirm the interface type matches the host PCB design. Ensure the adhesive mounting style aligns with the mechanical assembly constraints of the final device.

Antennas RF Selection Notes

Select this component when comprehensive coverage of major global satellite constellations is necessary. The ceramic patch design provides durability in various environmental conditions. Consider the physical dimensions and mounting method during the initial layout phase to ensure proper placement and signal integrity within the enclosure.

Antennas RF Part Context

This model belongs to the ATPGGBL5 series, which encompasses dielectric patch antennas supporting L1+L5 frequencies along with Galileo, Glonass, and Beidou bands. The series is engineered for high-performance GNSS applications requiring multi-constellation compatibility and stable signal reception across diverse geographic regions.

Antennas RF Replacement Considerations

The ATIGGBL52580-100 is a related variant within the same product family. Verify if the specific connector type or gain specifications of the alternative part meet the system requirements before substitution.
