ATW6-19170-3.0BT

Antennas RF Overview

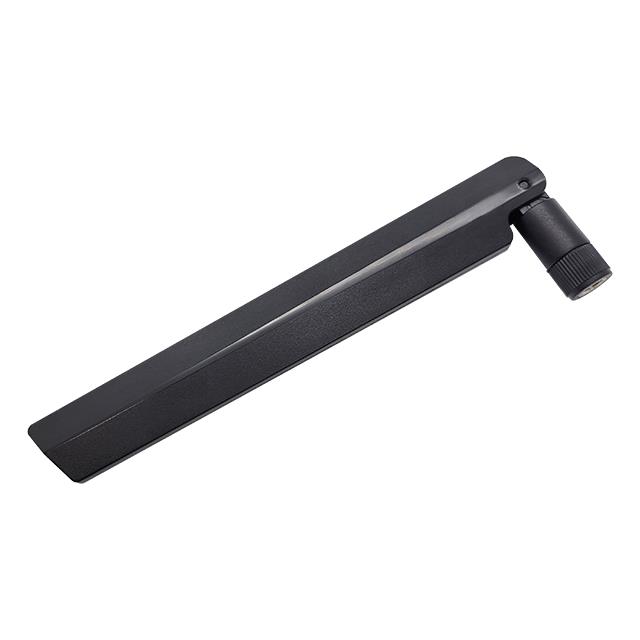

The YIC ATW6-19170-3.0BT is an RF antenna designed for Wi-Fi 6 applications, supporting multiple frequency bands including 2.4GHz, 5GHz, and 6GHz. It features peak gains of 3dBi and 4dBi across its operational ranges. The antenna utilizes a connector mount installation type with an SMA interface. Its physical form factor is described as a rubber ducky style, suitable for external integration into wireless communication systems requiring multi-band support.

Antennas RF Feature Summary

• Supports Wi-Fi 6 standards across 2.4GHz, 5GHz, and 6GHz bands
• Features connector mount installation with SMA interface
• Utilizes rubber ducky physical form factor

Antennas RF Applications

• Wi-Fi 6 network infrastructure
• External wireless communication devices
• Multi-band RF signal transmission systems

Antennas RF Procurement Notes

Verify the specific SMA connector gender and cable length requirements against system design specifications before procurement. Confirm that the rubber ducky form factor aligns with mechanical clearance constraints in the target enclosure. Ensure compatibility with the intended Wi-Fi 6 router or access point hardware to guarantee optimal signal integrity and performance.

Antennas RF Selection Notes

Select this model when multi-band coverage across 2.4, 5, and 6GHz is required for Wi-Fi 6 deployments. The SMA interface offers standard connectivity options for various wireless modules. Consider the external mounting nature of the rubber ducky design for applications where internal antenna placement is insufficient for desired range or signal quality.

Antennas RF Part Context

This component belongs to the ATW6 series by YIC, specifically engineered for modern wireless networking environments. The series focuses on providing reliable RF performance for next-generation Wi-Fi standards. The part number indicates specific gain and frequency characteristics tailored for comprehensive band coverage in consumer and industrial wireless equipment.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting hardware and connector specifications if considering alternative antennas from different manufacturers.
