AUR9503-12GD

$0.54

Description：IC REG LINEAR 1.2V 150MA 6-DFN
Series：-
Mfr：Diodes Incorporated
Package：Tape & Reel (TR)

SKU:162f359f9ea8 Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: Diodes Incorporated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AUR9503-12GD is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists Diodes Incorporated. Its product description is IC REG LINEAR 1.2V 150MA 6-DFN. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for AUR9503-12GD

Description：IC REG LINEAR 1.2V 150MA 6-DFN
Series：-
Mfr：Diodes Incorporated
Package：Tape & Reel (TR)
Output Configuration：Positive
Output Type：Fixed
Number of Regulators：1
Voltage - Input (Max)：5.5V
Voltage - Output (Min/Fixed)：1.2V
Voltage - Output (Max)：-
Voltage Dropout (Max)：0.2V @ 150mA
Current - Output：150mA
Current - Quiescent (Iq)：55 µA
Current - Supply (Max)：-
PSRR：70dB ~ 40dB (1KHz ~ 100kHz)
Control Features：-
Protection Features：Over Current, Over Temperature
Operating Temperature：-40°C ~ 80°C
Mounting Type：Surface Mount

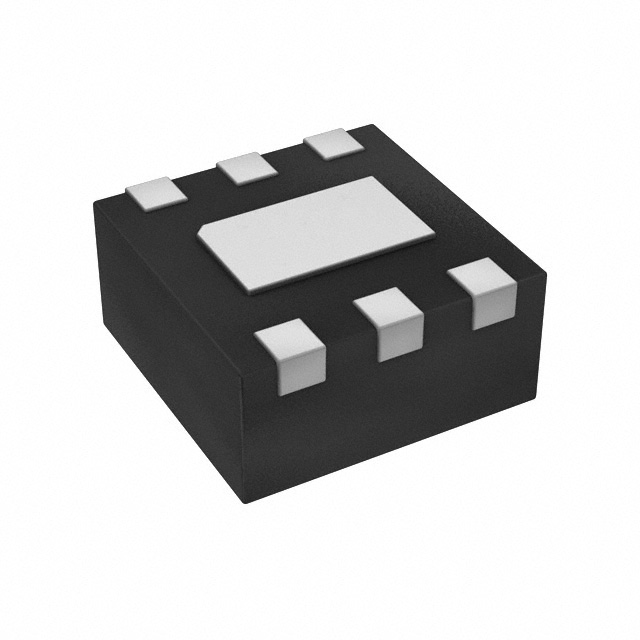

Package / Case：6-WFDFN Exposed Pad
Supplier Device Package：6-DFN (1.6x1.6)
Grade：-
Qualification：-

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for AUR9503-12GD

AUR9503-12GD

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The AUR9503-12GD is a linear voltage regulator IC manufactured by Diodes Incorporated. It provides a fixed positive output voltage of 1.2V with a maximum output current capability of 150mA. The device is housed in a compact 6-DFN package, designed for surface-mount technology applications. As part of the AURAmicr series, it functions as a low-dropout regulator suitable for power management tasks requiring stable voltage regulation in space-constrained electronic designs.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Provides a fixed 1.2V positive output voltage
Supports up to 150mA load current
Utilizes a compact 6-DFN surface-mount package

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Portable consumer electronics
Battery-powered devices
Embedded systems requiring stable 1.2V logic supply

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific suffix and package variant against the official datasheet before ordering. Confirm availability status as distribution channels may vary. Ensure compatibility with your PCB footprint design for the 6-DFN package. Check for any recent product change notifications regarding manufacturing updates or pin configurations.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when a fixed 1.2V rail is required with moderate current demands. The 150mA limit defines its suitability for low-power digital circuits. Consider thermal dissipation requirements based on input-output voltage differential and ambient conditions within the 6-DFN enclosure constraints.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to Diodes Incorporated's AURAmicr line of analog and power management integrated circuits. The series targets high-reliability applications in automotive, industrial, and computing sectors. The AUR9503-12GD specifically addresses needs for compact, efficient linear regulation in modern miniaturized electronic assemblies.
