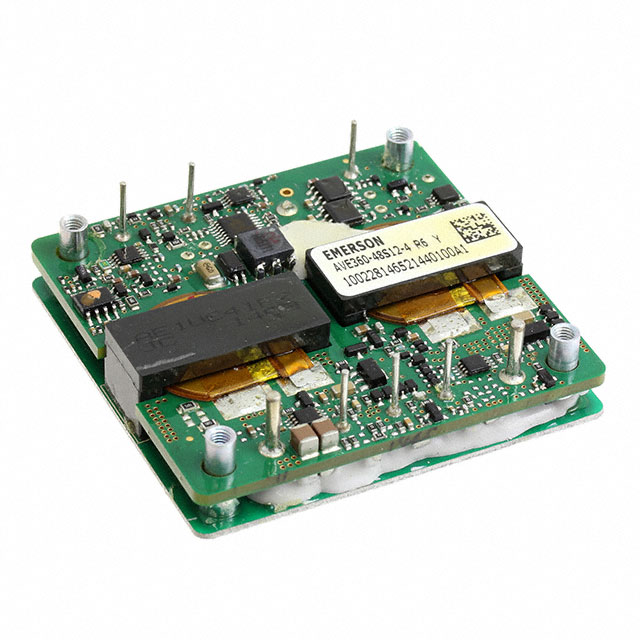

AVE360-48S12-4

AVE360-48S12-4 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 12V 360W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AVE360-48S12-4

• Description：DC DC CONVERTER 12V 360W
• Series：AVE360 (360W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：30A
• Power (Watts)：360 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：94%
• Mounting Type：Through Hole
• Package / Case：8-DIP Module, 1/2 Brick
• Size / Dimension：2.41" L x 2.28" W x 0.50" H (61.1mm x 57.9mm x 12.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for AVE360-48S12-4
