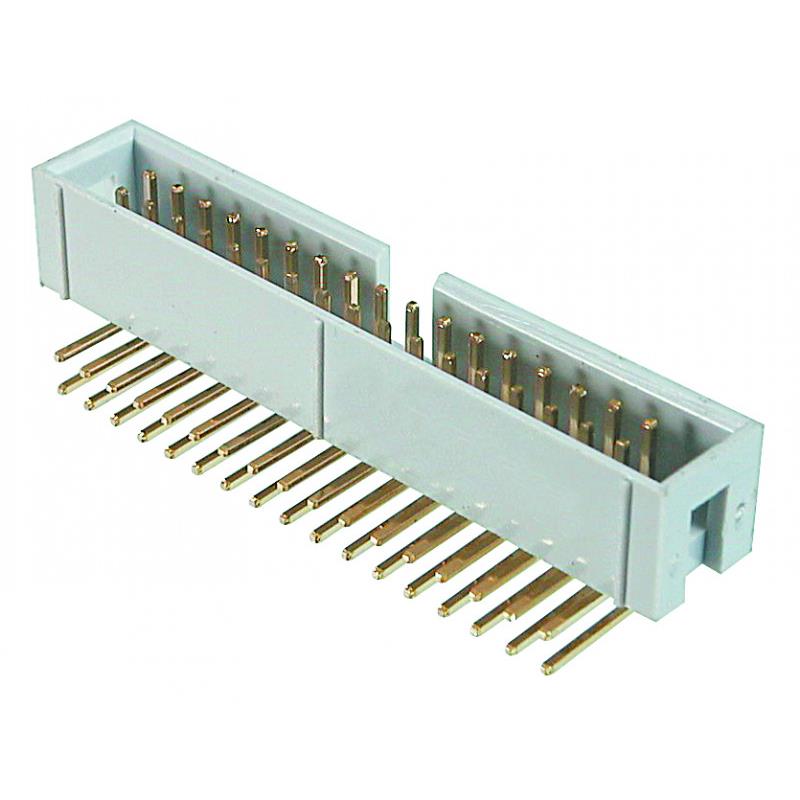

AWHW 16A-0502-T

$0.42

Description：DIN 41651, BOX HEADER, 2.54MM, 1
Series：AWHW
Mfr：Assmann WSW Components
Package：Tray

SKU:3a3391178ab1 Category: Headers, Male Pins Brand: Assmann WSW Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AWHW 16A-0502-T is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Assmann WSW Components. Its product description is DIN 41651, BOX HEADER, 2.54MM, 1. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for AWHW 16A-0502-T

Description：DIN 41651, BOX HEADER, 2.54MM, 1
Series：AWHW
Mfr：Assmann WSW Components
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：16
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.224" (5.70mm)
Contact Length - Post：0.124" (3.15mm)
Overall Contact Length：-
Insulation Height：0.352" (8.95mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
Features：Keying Slot
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Gray
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Male Pins datasheet and documents for AWHW 16A-0502-T

AWHW 16A-0502-T

Headers, Male Pins Overview

The AWHW 16A-0502-T is a board connector from the ASSMANN WSW Components AWHW series. It features 16 contacts arranged in 2 rows with a 0.1 inch (2.54mm) pitch. The connector is designed for through-hole mounting and utilizes solder terminals. It is a male header configured as a right-angle receptacle with a locking mechanism. The insulator is grey, constructed from glass-filled polyester, and the contacts are gold-plated phosphor bronze. The component supports a dielectric withstand voltage of 1000VAC.

Headers, Male Pins Feature Summary

Right-angle male header configuration for compact board-to-board connections
Integrated locking mechanism to secure mating interfaces
Gold-plated phosphor bronze contacts ensuring reliable conductivity
Through-hole solder termination for robust PCB attachment

Headers, Male Pins Applications

Industrial control panel interconnections
Consumer electronics internal circuit boards
Telecommunications equipment backplanes
Automotive electronic module assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix 'T' indicates the tray packaging format when sourcing. Confirm that the right-angle orientation matches the design layout requirements. Ensure compatibility with mating connectors within the same AWHW series family to maintain proper pitch and locking engagement. Check RoHS compliance status if required by project specifications.

Headers, Male Pins Selection Notes

Select this part for applications requiring a locked, right-angle connection between two PCBs. The 16-position count suits moderate density layouts. The through-hole installation method provides mechanical stability compared to surface mount alternatives. Consider the 1000VAC dielectric rating for insulation needs. Verify that the glass-filled polyester insulator meets thermal requirements for the operating environment.

Headers, Male Pins Part Context

This component belongs to the AWHW series of board connectors manufactured by ASSMANN WSW Components. The series offers various contact counts and orientations. The AWHW 16A-0502-T specifically addresses the need for a locked, right-angle interface. It complements other straight or IDC variants in the product line for diverse assembly configurations.
