AWHW24A-0102-T-R

Headers, Male Pins Overview

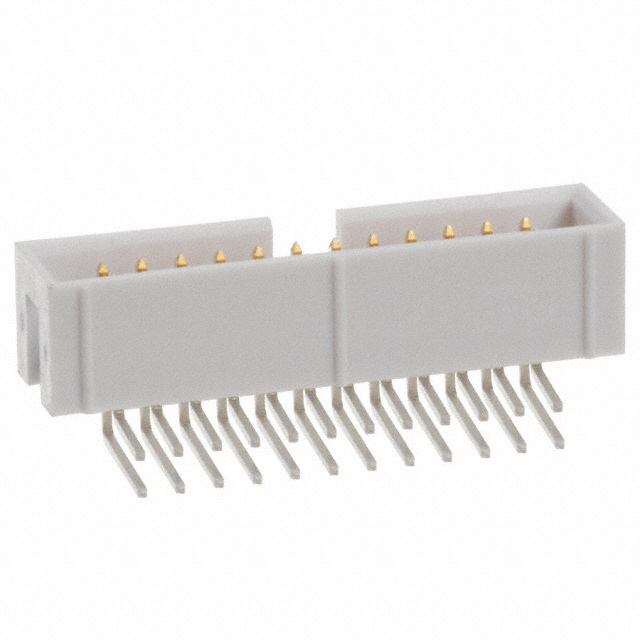

The AWHW24A-0102-T-R is a board-to-board/header connector from the AWHW series by Assmann WSW Components. It features a 24-position configuration with two rows of male pins. The connector utilizes a 2.54 mm (0.100 inch) pitch and is designed for right-angle through-hole mounting on printed circuit boards. The housing is constructed from polybutylene terephthalate (PBT), providing thermal stability. Contact plating consists of gold over nickel to ensure reliable conductivity and corrosion resistance.

Headers, Male Pins Feature Summary

• Right-angle header design facilitates compact PCB layout orientation
• Shrouded four-wall structure ensures precise mating alignment
• Through-hole termination method provides robust mechanical fixation
• Gold-plated contacts support durable electrical performance

Headers, Male Pins Applications

• Industrial control system interconnections
• Consumer electronics internal wiring
• Telecommunications equipment modules
• General-purpose computing hardware assemblies

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required pin count, row configuration, and angle orientation. Confirm that the voltage rating and current capacity align with the target circuit requirements. Ensure compatibility with mating connectors regarding shroud design and contact dimensions. Check for RoHS compliance documentation if environmental regulations apply to the final assembly.

Headers, Male Pins Selection Notes

Select this component when a right-angle, two-row header is required for space-constrained designs. The 2.54 mm pitch is standard for general-purpose applications. Consider the through-hole installation method for higher mechanical strength compared to surface mount alternatives. Evaluate the operating temperature range against the intended environment to ensure material integrity.

Headers, Male Pins Part Context

This connector belongs to the AWHW series, which offers various position counts and configurations. The series is characterized by low-profile designs suitable for dense packaging. Assmann WSW Components manufactures these connectors using standardized materials to ensure consistency across different pin counts within the same family line.

Headers, Male Pins Replacement Considerations

Compatible substitutes must match the 24-pin count, 2x12 row arrangement, 2.54 mm pitch, and right-angle form factor. Verify that alternative manufacturers provide identical shrouding and contact plating specifications to maintain interchangeability without redesigning the PCB footprint.
