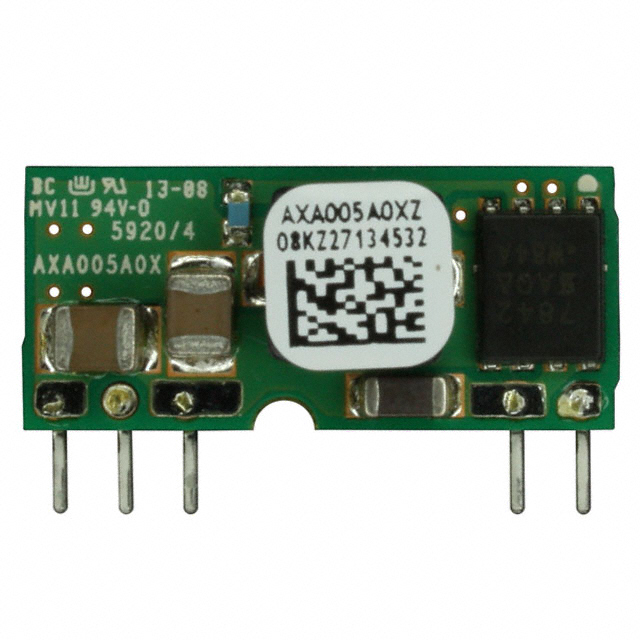

AXA005A0XZ

AXA005A0XZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 0.8-5.5V 27W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AXA005A0XZ

• Description：DC DC CONVERTER 0.8-5.5V 27W
• Series：Austin MicroLynx™
• Mfr：OmniOn Power™
• Package：Bulk
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：10V
• Voltage - Input (Max)：14V
• Voltage - Output 1：0.8 ~ 5.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：5A
• Power (Watts)：27 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：89%
• Mounting Type：Through Hole
• Package / Case：5-SIP Module
• Size / Dimension：0.90" L x 0.26" W x 0.40" H (22.9mm x 6.6mm x 10.2mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for AXA005A0XZ
