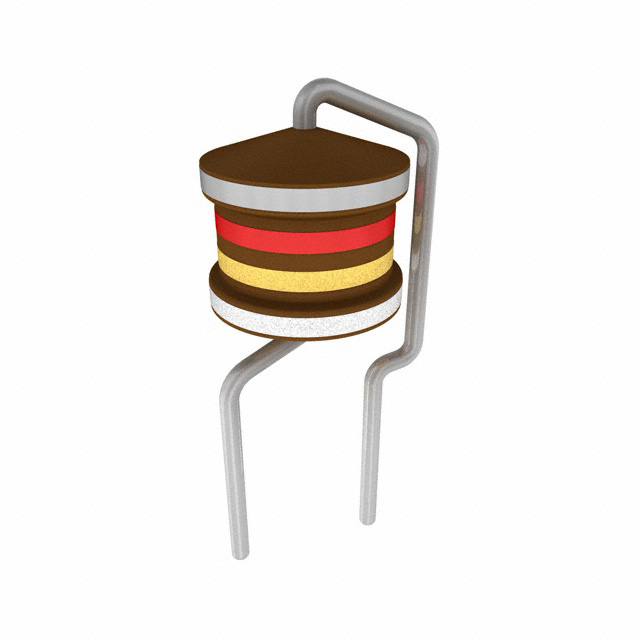

B82144B2822K000

Description：FIXED IND 8.2UH 2.65A 105MOHM TH
Series：LBC
Mfr：EPCOS - TDK Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:38a3fab56f8a Category: Fixed Inductors Brand: EPCOS - TDK Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

B82144B2822K000 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is FIXED IND 8.2UH 2.65A 105MOHM TH. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for B82144B2822K000

Description：FIXED IND 8.2UH 2.65A 105MOHM TH
Series：LBC
Mfr：EPCOS - TDK Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：8.2 µH
Tolerance：±10%
Current Rating (Amps)：2.65 A
Current - Saturation (Isat)：3.1A
Shielding：Unshielded
DC Resistance (DCR)：105mOhm Max
Q @ Freq：40 @ 252kHz
Frequency - Self Resonant：28MHz
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：1 MHz
Mounting Type：Through Hole
Package / Case：Radial, Vertical Cylinder
Supplier Device Package：-
Size / Dimension：0.256" Dia (6.50mm)
Height - Seated (Max)：0.551" (14.00mm)
Features：-

Fixed Inductors datasheet and documents for B82144B2822K000

B82144B2822K000

Fixed Inductors Overview

The B82144B2822K000 is a fixed wirewound inductor from the TDK LBC series, featuring a radial vertical cylindrical package. It provides an inductance of 8.2 µH with a ±10% tolerance and a ferrite drum core. The component supports a maximum rated current of 2.65 A and a saturation current of 3.1 A, with a maximum DC resistance of 105 mΩ. It operates within a temperature range of -55°C to 125°C and exhibits a self-resonant frequency of 28 MHz.

Fixed Inductors Feature Summary

Radial leaded construction for through-hole mounting
Ferrite drum core design for stable magnetic properties
High saturation current capability relative to size

Fixed Inductors Applications

RF choke circuits
Power supply filtering
Signal processing stages

Fixed Inductors Procurement Notes

Verify component status as End-of-Life (EOL) or Obsolete based on the latest Product Change Notification (PCN). Confirm RoHS3 compliance and REACH status prior to integration. Ensure replacement strategies account for potential availability constraints due to discontinuation schedules.

Fixed Inductors Selection Notes

Select this component when radial through-hole mounting is required for high-current applications. Compare DCR and saturation limits against circuit requirements. Consider physical dimensions and thermal performance within the specified operating temperature range during board layout.

Fixed Inductors Part Context

This part belongs to the EPCOS (TDK) LBC series of leaded chokes and inductors. These components are designed for general-purpose electronic applications requiring reliable inductive filtering. The series offers various inductance values and current ratings in standardized packages.
