B82804A0324A220

Pulse Transformers Overview

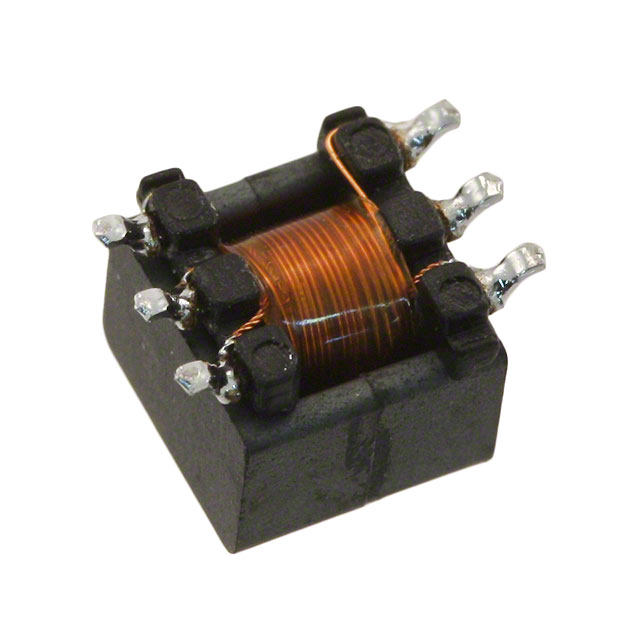

The B82804A0324A220 is a pulse transformer manufactured by EPCOS (TDK Electronics), designed for gate drive applications. It features surface mount technology with dimensions of 6.70mm length and 6.10mm width. The component operates within a temperature range suitable for standard electronic environments, ensuring reliable performance in power supply circuits requiring isolated signal transmission.

Pulse Transformers Feature Summary

• Designed specifically for gate drive applications to ensure precise signal isolation.
• Utilizes surface mount technology for efficient integration into modern printed circuit boards.
• Provides robust electrical isolation between primary and secondary windings.

Pulse Transformers Applications

• Gate drive circuits in power electronics
• Isolated signal transmission in switching power supplies
• Pulse transformer applications in industrial control systems

Pulse Transformers Procurement Notes

Verify the specific suffix 'A220' against official TDK-EPCOS documentation to confirm exact winding configuration and tolerance. Ensure compatibility with existing PCB footprint and thermal management requirements before procurement.

Pulse Transformers Selection Notes

Select this component when isolated gate driving is required in compact designs. Consider the surface mount package size and operating temperature range relative to the application's environmental constraints and board space limitations.

Pulse Transformers Part Context

This part belongs to the B82804A series of pulse transformers from EPCOS (TDK). The series is characterized by its use in high-frequency applications, offering reliability and compactness for various power conversion topologies requiring galvanic isolation.

Pulse Transformers Replacement Considerations

Consult official TDK-EPCOS substitution lists for direct equivalents. Verify pinout compatibility and electrical specifications if considering alternative manufacturers or series variants.
