BB-2J7050BGFA-150

$227.14

Description：ANT 5IN1 LTE MIMO,WIFI MIMO,GPS,
Series：-
Mfr：Advantech Corporation
Package：Bulk

SKU:765657dd7b35 Category: RF Antennas Brand: Advantech Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BB-2J7050BGFA-150 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Advantech Corporation. Its product description is ANT 5IN1 LTE MIMO,WIFI MIMO,GPS,. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for BB-2J7050BGFA-150

Description：ANT 5IN1 LTE MIMO,WIFI MIMO,GPS,
Series：-
Mfr：Advantech Corporation
Package：Bulk
RF Family/Standard：Cellular, General ISM, Navigation, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：829MHz, 1.575GHz, 1.604GHz, 1.94GHz, 2.45GHz, 2.6GHz, 5.422GHz
Frequency Range：698MHz ~ 960MHz, 1.598GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.41GHz ~ 2.49GHz, 2.5GHz ~ 2.7GHz, 4.92GHz ~ 5.25GHz
Antenna Type：Dome
Number of Bands：7
VSWR：1.5, 1.6, 1.7, 1.9, 2.1
Return Loss：-16.5dB, -15.6dB, -14dB, -13.6dB, -11dB, -10.4dB
Gain：3dBi, 28dBi, 28dBi, 4.2dBi, 5.6dBi, 4dBi, 5.5dBi
Features：Cable - 1.5m
Termination：SMA Male, RP-SMA
Ingress Protection：IP67, IP69
Grade：-
Qualification：-
Mounting Type：Screw Mount
Height (Max)：3.543" (90.00mm)
Applications：2G, 3G, 4G, Galileo, GLONASS, GNSS, GPS, ISM, LTE, QZSS, Wi-Fi
Power - Max：25 W

Antennas RF datasheet and documents for BB-2J7050BGFA-150

BB-2J7050BGFA-150

Antennas RF Overview

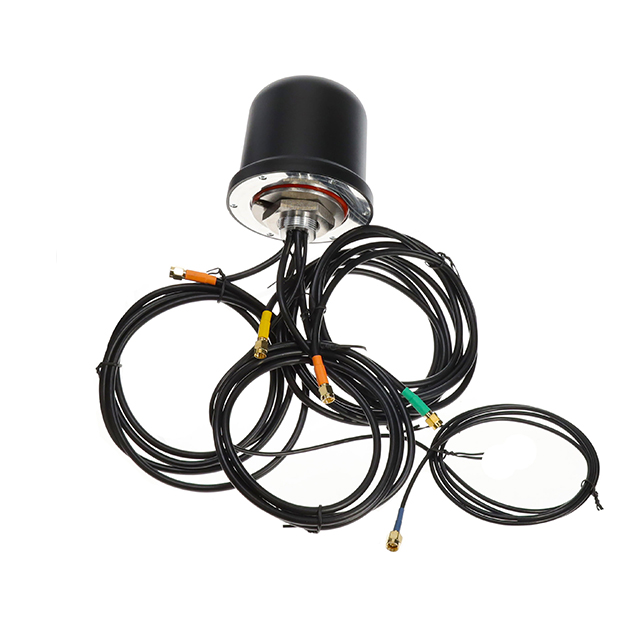

The Advantech BB-2J7050BGFA-150 is a heavy-duty, ground-independent antenna designed for robust wireless communication in demanding environments. It supports LTE MIMO, 2.4/5.0 GHz ISM MIMO, and GNSS frequencies. The unit measures 96 x 90 mm and utilizes screw mounting with five cables, each 1.5 meters in length. Connectivity includes two SMA male connectors for LTE, two R-SMA connectors for WiFi, and one SMA male connector for GNSS. It features an anti-rotation mechanism and holds IP67, IP69, and IK09 certifications.

Antennas RF Feature Summary

Supports simultaneous LTE MIMO, dual-band ISM, and GNSS operations
Heavy-duty construction with anti-rotation installation capability
High ingress protection ratings for harsh outdoor conditions

Antennas RF Applications

Mobile network wireless communication systems
Outdoor industrial IoT deployments
Ruggedized cellular connectivity infrastructure

Antennas RF Procurement Notes

Verify the specific cable lengths and connector types against project requirements before ordering. Confirm that the mounting surface allows for the required screw installation and anti-rotation stability. Ensure environmental conditions do not exceed the specified IP67 and IK09 limits. Cross-reference the frequency bands with local regulatory standards to ensure compliance for LTE and ISM operations.

Antennas RF Selection Notes

Select this model when high durability and multi-protocol support are required for stationary outdoor installations. It is suitable for applications needing integrated cellular, Wi-Fi, and positioning capabilities in a single rugged unit. Consider the physical dimensions and cable routing needs during system design. This antenna is ideal for environments where standard indoor antennas would fail due to weather or mechanical stress.
