BB-TG.09.0113

Antennas RF Overview

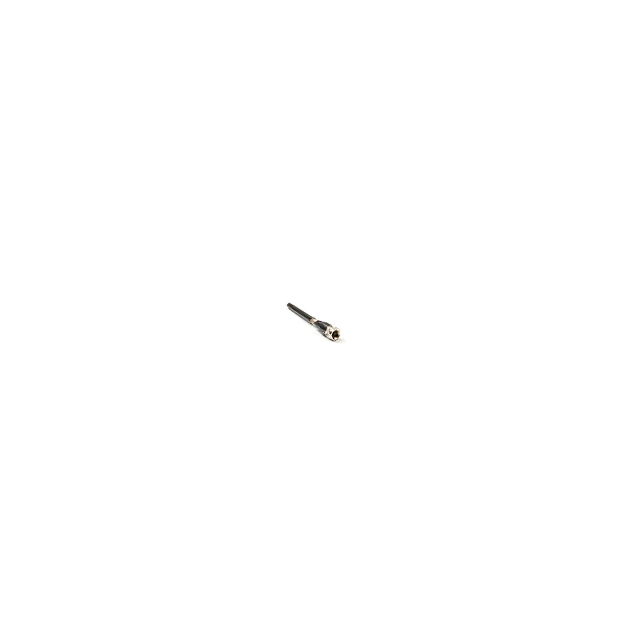

The Advantech BB-TG.09.0113 is a penta-band RF antenna designed for GSM, UMTS, LTE, CDMA, and HSPA applications. It features an SMA male connector and a stick form factor with a maximum height of 72.00 mm (2.835 inches). The unit provides a gain of 2 dBi and is engineered for connector mounting. This component supports multi-standard wireless communication protocols required for industrial IoT gateways.

Antennas RF Feature Summary

• Supports five distinct cellular bands including GSM, UMTS, LTE, CDMA, and HSPA
• Utilizes an SMA male interface for secure physical connection
• Designed as a compact stick-style antenna for space-constrained installations

Antennas RF Applications

• ER75i v2 Industrial Gateways
• UR5i v2 Libratum Routers
• Industrial IoT connectivity modules requiring multi-band support

Antennas RF Procurement Notes

Verify the specific revision level against the target device manual to ensure mechanical compatibility. Confirm that the SMA male termination matches the port configuration on the host equipment. Cross-reference the official datasheet for precise frequency ranges to validate network coverage requirements before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when deploying Advantech gateways requiring simultaneous support for legacy and modern cellular standards. Ensure the installation environment accommodates the 72.00 mm height constraint. Verify that the application does not require integrated power amplification or active components, as this is a passive antenna solution.

Antennas RF Part Context

This component belongs to Advantech's accessory portfolio for industrial networking hardware. It serves as a replacement or upgrade part for the ER75i v2 and UR5i v2 series. The product ensures reliable signal reception across diverse global cellular networks for edge computing devices.

Antennas RF Replacement Considerations

Compatible substitutes include other penta-band SMA antennas specified for the ER75i and UR5i platforms. Verify mechanical dimensions and connector gender match before substitution.
