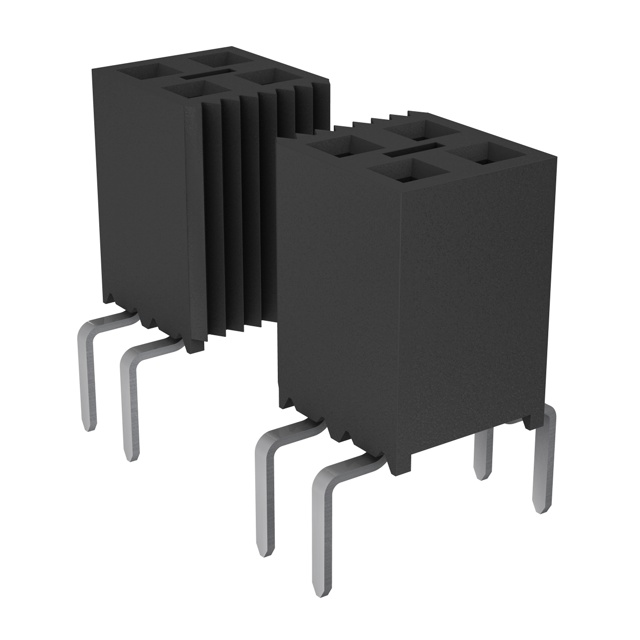

BCS-105-T-D-PE-BE

BCS-105-T-D-PE-BE is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN RCPT 10POS 0.1 TIN PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for BCS-105-T-D-PE-BE

• Description：CONN RCPT 10POS 0.1 TIN PCB
• Series：Tiger Claw™ BCS
• Mfr：Samtec Inc.
• Package：Tube,Tube
• Connector Type：Receptacle, Pass Through
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：10
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Insulation Color：Black
• Insulation Height：0.290" (7.37mm)
• Contact Length - Post：0.128" (3.25mm)
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：4.6A per Contact
• Voltage Rating：475VAC

Headers, Receptacles, Female Sockets datasheet and documents for BCS-105-T-D-PE-BE
